SKU: 4X4FORCE-BLWSUS2412-KA140

Armor 3 Loop Bullbar Light Side Steps Winch for Toyota Landcruiser 200 07-15 SYD

$2,480.00
RRP $2,976.00
SAVE $496.00 (17%)
In Stock


Calculate Shipping



Local Pickup - $0.00
Pickup from Sydney Warehouse
Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Australia Express Post - $0.00

Description

4X4FORCE bull bars help protect your vehicle from animal strikes when driving on remote roads, and provide convenient locations to mount other 4x4 accessories such as winches, lights and aerials.

4X4FORCE bull bar is carefully crafted from premium grade materials and components to deliver the most comprehensive frontal protection and styling available.

Each 4X4FORCE bull bar is specifically designed to complement the unique contours of individual vehicle models. This ensures the best possible fit, look and functionality for a particular vehicle. All 4X4FORCE bars are finished in a durable powder coat.

Features:

Winch compatible
Parker / Indicator included
A-Frame triple loop design
Tough polyurethane bumpers
Steel construction

4X4FORCE LED Light is Your Wise Choice.

Using a special design of the LED constant current source power supply circuit, the performance is very stable, long life, 50,000 hours, the protection of the environment, you can enjoy using it.Each light has using OSRAM P8 chip, and it is durable, low power consumption. Safe to use.

Features:

* Lifespan: up to 50,000 h
* Easy to install
* IP68 dust & Waterproof
* Heavy duty powdercoated steel mount
* Extended illumination distance
* Blistering bright performance
* Combo Beam

WINCH'S CLASSIFICATION AND FEATURES

13500LB WINCH SPECIFICATIONS

Rated Line Pull 13500LBS(6123kgs) single line
Motor 5.3kw/7.2hp, series wound
Control Remote switch, 9.8ft(3m)lead
Gear train 3 Stage Planetary
Gear train ratio 265:1
Clutch Sliding Ring Gear
Braking Action Automatic In-The-Drum
Drum Size Φ2.5"(64)mm x (8.8")223.5mm
Cable Φ9.3mm x 26m
Overall Dimensions 19.8"x6.3"x8.5"(529mm x 160mm x 217mm)
Mounting Bolt Pattern 255mm x 114mm Φ 11
Weight N.W.25kg G.W.26Kg
Packing Size 615 x 355 x 265mm



PULL. SPEED. AMPERES. VOLTS

Line pull lbs(kgs] Line speed ft/min(m/min) Current A
0 24.9(7.6) 70
1500(680) 17.1(5.2) 160
3500(1588) 11.5(3.5) 220
5500(2495) 9.2(2.8) 260
7500(3402) 7.9(2.4) 310
13500(6123) 6.2(1.9) 380



LINE PULL AND ROPE CAPACITY IN LAYER

Layer Rated Line Pull lbs(kgs) Total Rope on Drum ft(m)
1 13500(6123) 13(5)
2 10200(4636) 23(11)
3 8705(3956) 69(21)
4 7310(3323) 92(28)

4X4FORCE Steel Side Steps & Brush Rail Bars Rock Sliders is Manufactured Using Heavy Duty Steel and This Means a Heavy Duty Construction That Can Most Offorad Incidents, Giving Your Side Seals the Maximum Protection, Unlike Aluminum Side Steps.

The Frame is Powder Coated in Order to Prevent Rust And Corrosion.

Features:

Black Powder Coated Finish - Longer Lasting
*Manufactured using Heavy Duty Steel
*Kit Comes with brackets, bolts. Easy to fit on
*Steel construction
*Specially designed for Australian Road


Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2025 United Autoparts. All rights reserved.

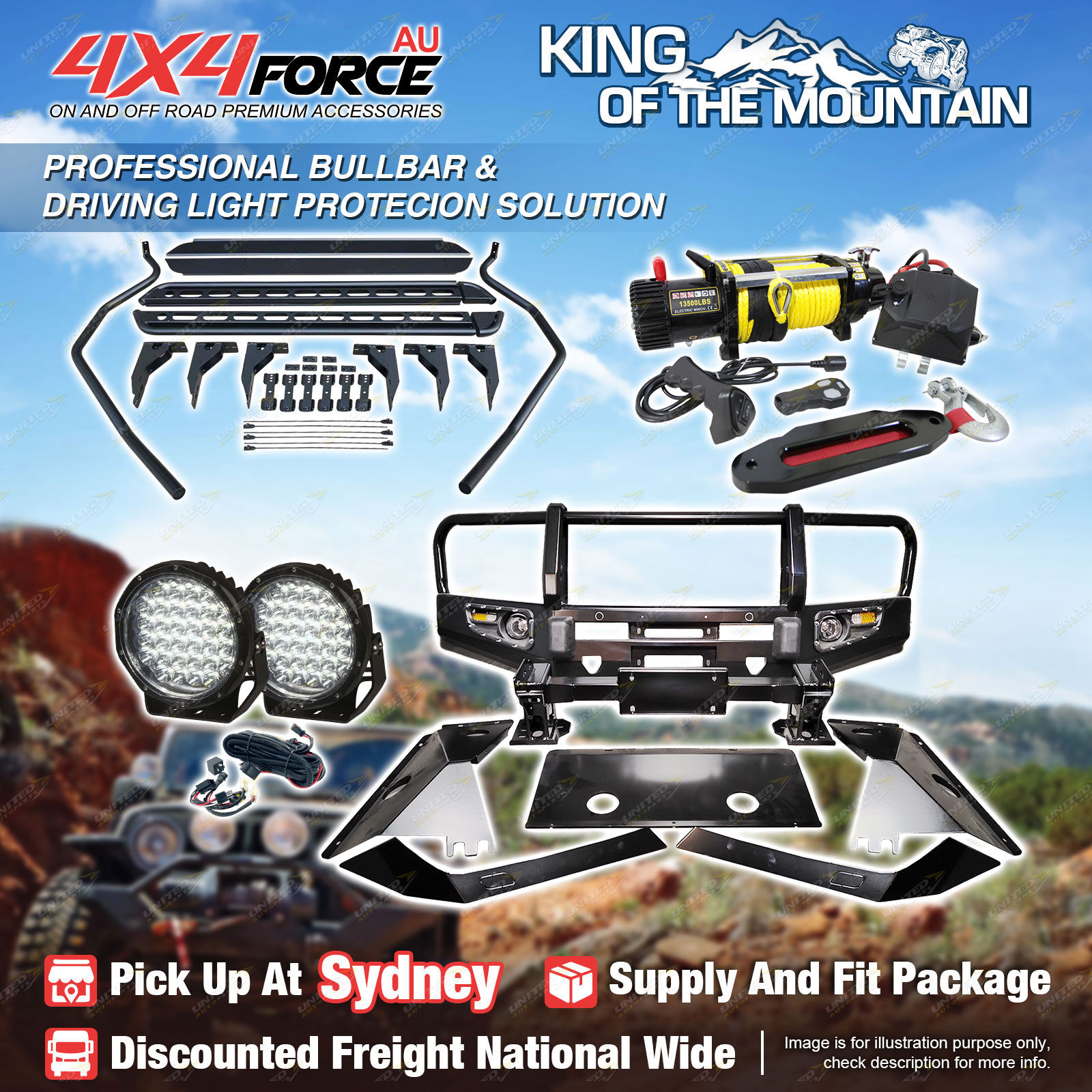

Contents:

1 Set 4X4FORCE Front Premium Armor 3 Loop Bumper Bullbar (W/ Stone Guard Plate)

Pair 4X4FORCE 9 Inch Solid Round LED Driving Light 7900 Lumen

1 Set 4X4FORCE 2-Way Deutsch Wiring Loom Harness Kit With Flush Mountable ON/OFF Switch

1 Set 4X4FORCE Steel Side Steps & Brush Rail Bars Rock Sliders

4X4FORCE Electricity 4WD Recovery Winch Kit

Suits: Toyota Landcruiser 200 2007-2015

Parameter(Bull Bar):

Style: 3 Loop Material: Heavy Duty Steel ; Powder Coated
Guard Plate QTY: 3

Parameter(Light):

Photometrici(LX): 1 LUX@1150M LED Lifespan:50,000 Hour
Lumen(Each): 7900LM Ingress Rating: IP68
Required Voltage: 9.0V,32.0V Pemp Colour: 6500K
Power(Each): 160W Voltage: 12V/24V
Beam Patttern:Spot + Flood Qty(Each Light): 32 Pcs Leds

Parameter(Wire Kit):

Length: 2-Meter Switch Relay:12V DC 40A
Blade Fuse: 25A Feature: 2 Way Deutsch
Switch Type: Flush Mountable on/off Wire#:12#

Parameter(Side Step):

Kit Comes with brackets, bolts Material:Heavy Duty Steel ; Black Powder Coated

Specifications

SKU 4X4FORCE-BLWSUS2412-KA140
Brand Stock

Reviews

Be The First To Review This Product!

Help other Parts360 users shop smarter by writing reviews for products you have purchased.

Write a product review
