SKU: Rancho-CS-U2210-EL004

Front 35mm Lift Rancho HD Complete Struts for Toyota Hilux KUN26 3.0 4WD 05-15

$843.95
RRP $1,012.74
SAVE $168.79 (17%)
Sold Out


Calculate Shipping



Local Pickup - $0.00
Pickup from Sydney Warehouse
Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Australia Express Post - $0.00

Description

Make Model Submodel Series Year
TOYOTA HILUX (_N1_, _N2_) 3.0 D 4WD (KUN26) 120KW 163HP DIESEL ALL-WHEEL DRIVE PLATFORM/CHASSIS 02/05-08/06
TOYOTA HILUX (_N1_, _N2_) 3.0 D 4WD (KUN26) 126KW 171HP DIESEL ALL-WHEEL DRIVE PLATFORM/CHASSIS 08/06-09/15
TOYOTA HILUX VII (_N1_, _N2_, _N3_) 3.0 D 4WD (KUN26) 120KW 163HP DIESEL ALL-WHEEL DRIVE UTE 03/05-08/06
TOYOTA HILUX VII (_N1_, _N2_, _N3_) 3.0 D-4D 4WD (KUN26) 126KW 171HP DIESEL ALL-WHEEL DRIVE UTE 08/06-09/15

Rancho is an exclusive four wheel drive shock absorber and suspension springs brand that can improve your ride whether you are traveling through the rough Aussie outback, taking your family on an off-road adventure, towing your caravan or your drive to work.

Featuring Rancho's exclusive Cross-Tuned Technology, this four wheel drive replacement shock absorber range provides significantly improved on and off-road handling performance thanks to several significant engineering enhancements.

Rancho four wheel drive replacement springs deliver the benefits of more than 60 years of spring research and development to the Australian and New Zealand four wheel drive market.

The Rancho RS5000X shock absorber and spring range have been designed and developed in Australia to meet the demands of 4x4 use on and off the road, and in compliance with Australian regulations.

Innovative Rancho RS5000X shock is a unique, patented valving system and advanced compression functionality.The Rancho RS5000X Cross-Tuned Technology will improve the vehicle' s overall on- and off-road handling and performance.

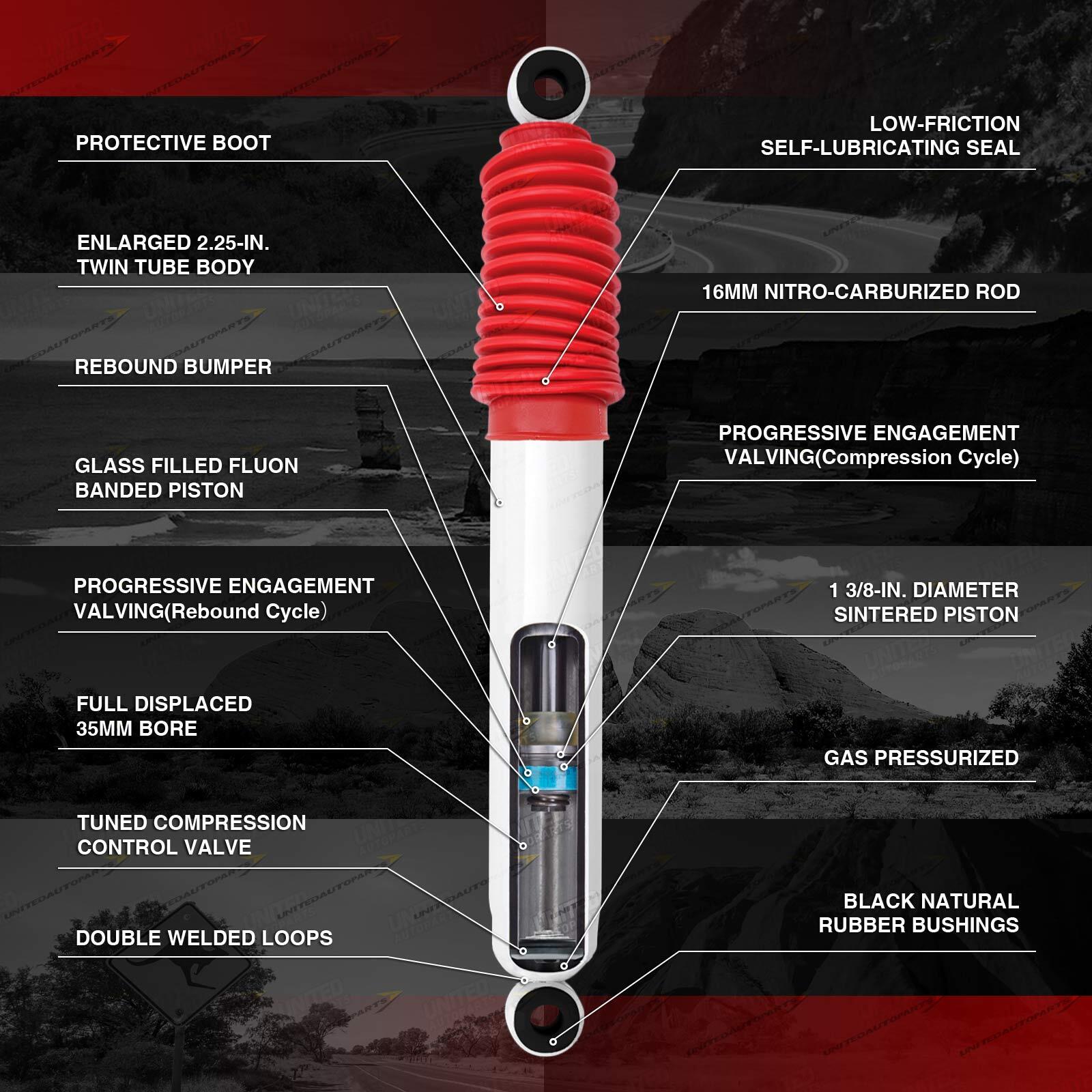

Feature:

Cross-Tuned Technology
Progressive Engagement Valving
Tuned Compression Control Valve
Enlarged 2-1/4-inch Twin Tube Body
Gas Pressurization of Shock
16 mm Nitro-Carburized Rod
Full-Displaced 35 mm Bore

1-3/8-inch Diameter Sintered Iron Piston
Rebound Bumper
Black, Natural Rubber Bushings
Low-Friction, Self-Lubricating Seal
Protective Boot
Glass-Filled, Fluon Banded Piston
Double-Welded Loops
*Rancho RS5000X series struts include 60PSI of gas pressurization.

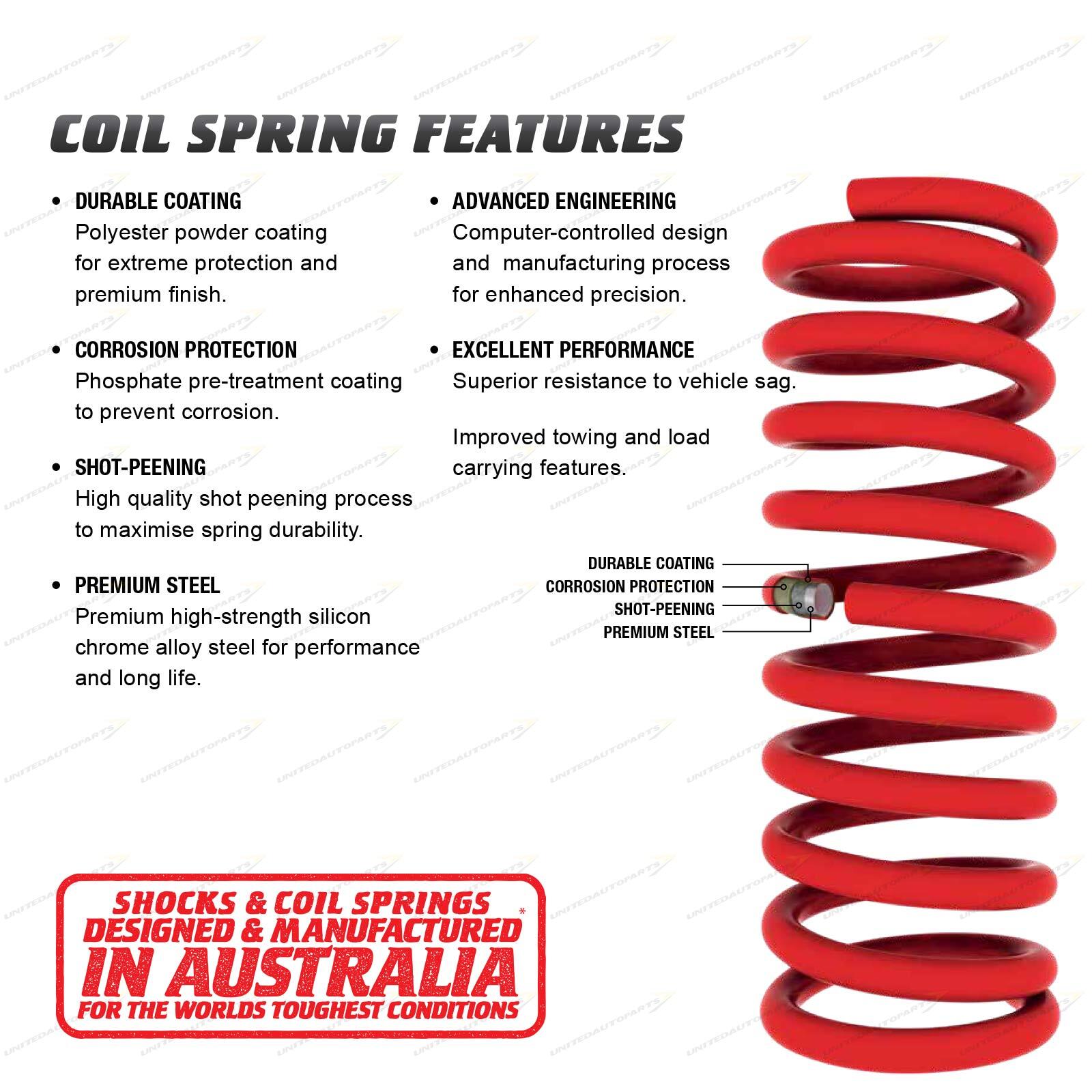

All Rancho Springs are designed and manufactured in Australia using a quality shot peening process to maximise spring durability. They also feature premium high strength silicon chrome alloy steel for enhanced performance and longer life.

There are several additional key advantages to selecting Rancho Springs as your top four wheel drive replacement choice in suspension replacement:

*Superior durability through polyester powder coating, providing extreme protection and a premium finish, while a Phosphate pre-treatment coating prevents corrosion.
*Rancho Springs offer excellent upgraded suspension performance by providing superior resistance to vehicle sag, improved towing capacity and load carrying features
*Tenneco’s controlled CAD (Computer Aided Design) design and manufacturing process ensures enhanced product precision.
*Rancho coil springs are covered by a 3 year/60,000km warranty.





Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 United Autoparts. All rights reserved.

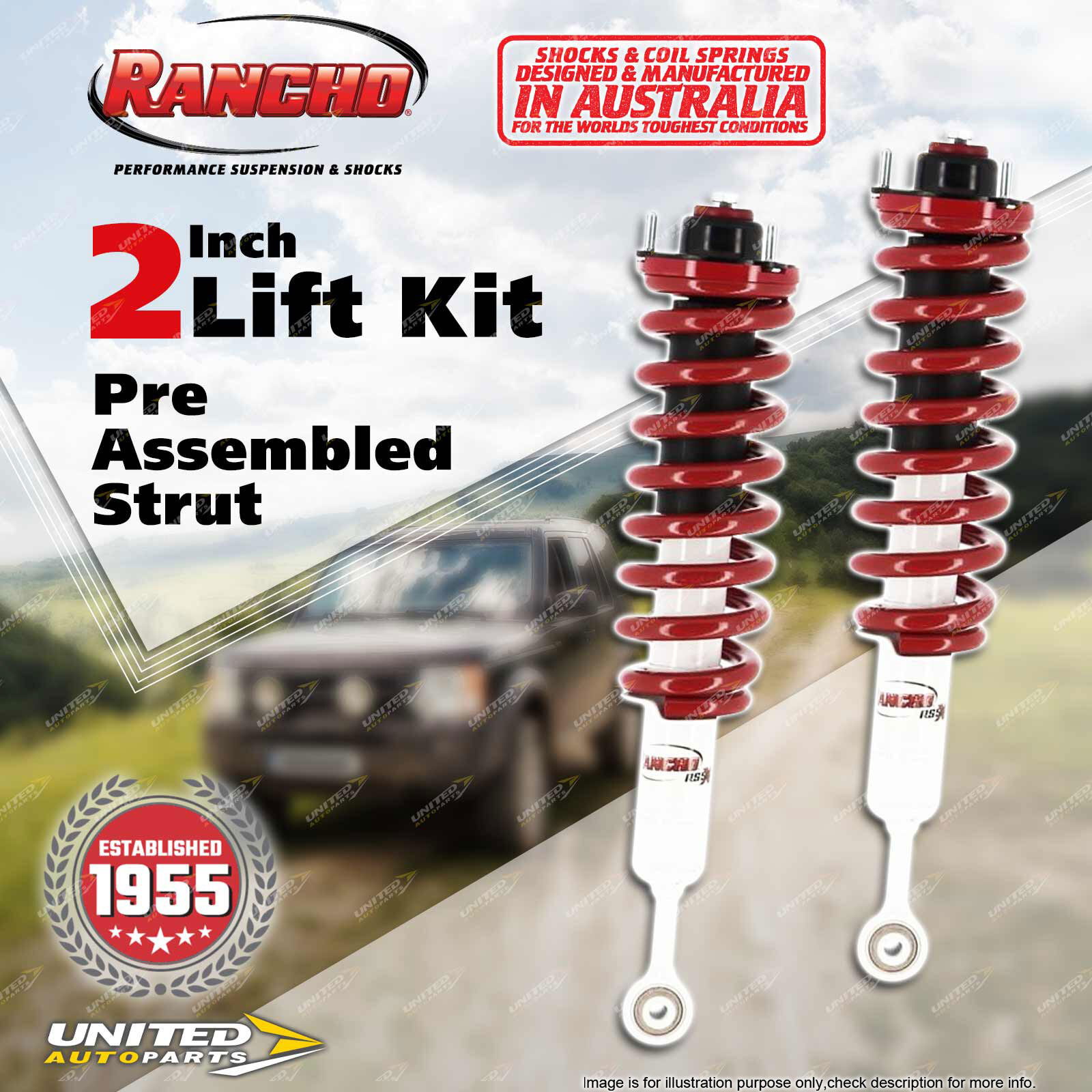

Contents: 2 Pcs Front Rancho Pre-Assembled Strut

Position: Front

Height: 35mm Lift

Load: 90-120KG

Suits: Toyota Hilux KUN26 3.0 4WD 05-15

(*please advise year model, so we can make sure send you the right parts)

Specifications

SKU Rancho-CS-U2210-EL004
Brand Rancho
