NGK Ignition Lead Set for Ford Falcon XW XY XA XB XC XD XE LTD FA FB FC FD

SKU: NGK-Leads-U1812-AG097

NGK Ignition Lead Set for Ford Falcon XW XY XA XB XC XD XE LTD FA FB FC FD

$146.95
RRP $176.34
SAVE $29.39 (17%)
In Stock

Calculate Shipping


Local Pickup - $0.00
Pickup from Sydney Warehouse
Australia Post-Eparcel - $0.00
Australia Post Parcel Post
Australia Express Post - $0.00

Description

FEATURES & BENEFITS

  • Electromagnetic Interference (EMI) suppression
    Adoption of stainless steel wire and ferrite magnetic core produces the impedance necessary to suppress EMI without comprising sparking performance.
  • Stable Resistance
    The resistance of solid carbon-core Ignition Leads tends to increase with time,however the resistance of NGK wire wound Ignition Leads remains virtually unchanged.
  • Excellent Conductivity
    The lower resistance (2-8 kΩ/m compared to 16 kΩ/m for common leads) offers superior conductivity.
  • Superior Heat Resistance
    The highest quality silicone insulation provides a wide operating temperature range.Unlike other materials it is capable of superior performance under extreme conditions (-50ºC to 250ºC).
  • Perfect to Complement NGK Spark Plugs

WHY CHOOSE NGK?

NGK is a world leading spark plug brand that also specialises in ignition leads.NGK Ignition Leads yield an extremely low resistance value (from 1,300 ohms per metre) that allow superior conductivity.They are manufactured with advanced insulating material,and have exceptional long-life durability.

NGK Ignition Leads are packaged in sets,and include the coil-to-distributor when applicable.Each set is tailored to the correct lead length and thickness in 5,7or 8mm variants,for the exact make and model specified.

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Copyright © 2014 - 2023 United Autoparts. All rights reserved.

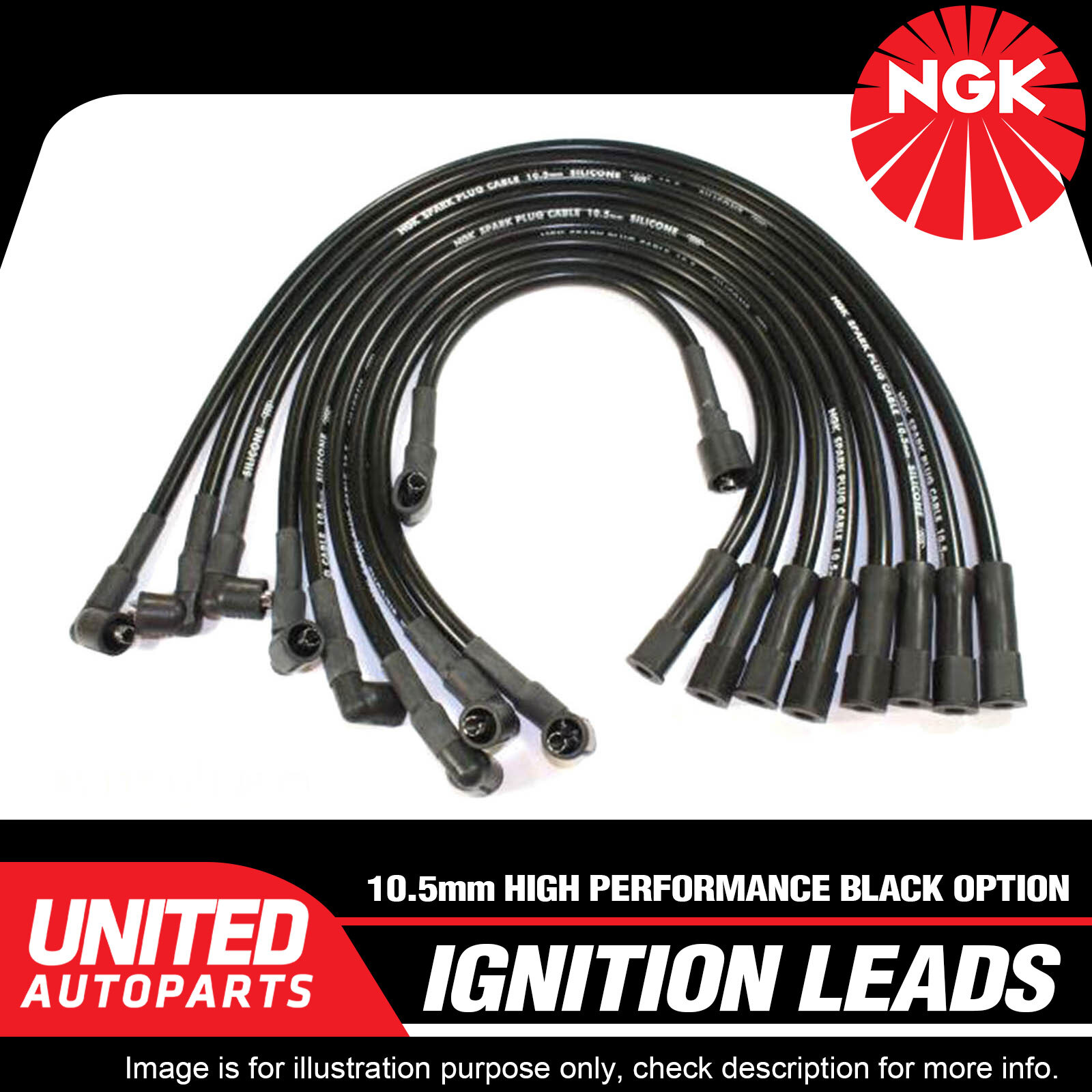

CONTENTS : Ignition Lead Set

PARAMETERS:

Lead Length #1 :  650mm
Lead Length #2 :  650mm
Lead Length #3 :  700mm
Lead Length #4 :  700mm
Lead Length #5 :  700mm
Lead Length #6 :  700mm
Lead Length #7 :  750mm
Lead Length #8 :  800mm
Cable Width :  10.5mm
Coil Lead Length :  330mm

SUIT:

Make Model Series Version Engine CC Engine Config. Cam Induction Valve Kw Year From Year To Note
FORDFalconXW-302 cu.in (W)4.9LV8 CylOHVCarb16V06/6910/7010.5mm HIGH PERFORMANCE BLACKOPTION
FORDFalconXW-351 cu.in (w)5.8LV8 CylOHVCarb16V06/6910/7010.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXY-302 cu.in (C)4.9LV8 CylOHVCarb16V11/7003/7210.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXY-351 cu.in (C)5.8LV8 CylOHVCarb16V11/7003/7210.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXA-302 cu.in (C)4.9LV8 CylOHVCarb16V03/7211/7310.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXA-351 cu.in (C) 5.8LV8 CylOHVCarb16V03/7211/7310.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXB-302 cu.in (C)4.9LV8 CylOHVCarb16V11/73 08/76 10.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXB-351 cu.in(C)5.8LV8 CylOHVCarb16V11/73 08/7610.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXC-302 cu.in (C)4.9LV8 CylOHVCarb16V08/7607/7910.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXC-351 cu.in (C)5.8LV8 CylOHVCarb16V08/7607/7910.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXD-302 cu.in (C)4.9LV8 CylOHVCarb16V08/7902/8210.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXD-351 cu.in (C)5.8LV8 CylOHVCarb16V08/7902/8210.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXE-302 cu.in (C)4.9LV8 CylOHVCarb16V03/8209/8410.5mm HIGH PERFORMANCE BLACK OPTION
FORDFalconXE-351 cu.in (C)5.8LV8 CylOHVCarb16V03/8209/8410.5mm HIGH PERFORMANCE BLACK OPTION
FORDLTDFA-351 cu.in5.8LV8 CylOHVCarb16V737610.5mm HIGH PERFORMANCE BLACK OPTION
FORDLTDFB-351 cu.in5.8LV8 CylOHVCarb16V767910.5mm HIGH PERFORMANCE BLACK OPTION
FORDLTDFC-351 cu.in (C)5.8LV8 CylOHVCarb16V798310.5mm HIGH PERFORMANCE BLACK OPTION
FORDLTDFD-302 cu.in (C)4.9LV8 CylOHVCarb16V838410.5mm HIGH PERFORMANCE BLACK OPTION
FORDLTDFD-351 cu.in (C)5.8LV8 CylOHVCarb16V838410.5mm HIGH PERFORMANCE BLACK OPTION

Specifications

SKU NGK-Leads-U1812-AG097
Brand NGK
