PHC HD MultiRate Clutch Kit for Toyota Hiace LH 51 61 70 71 Hilux LN 55 56 60 65

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

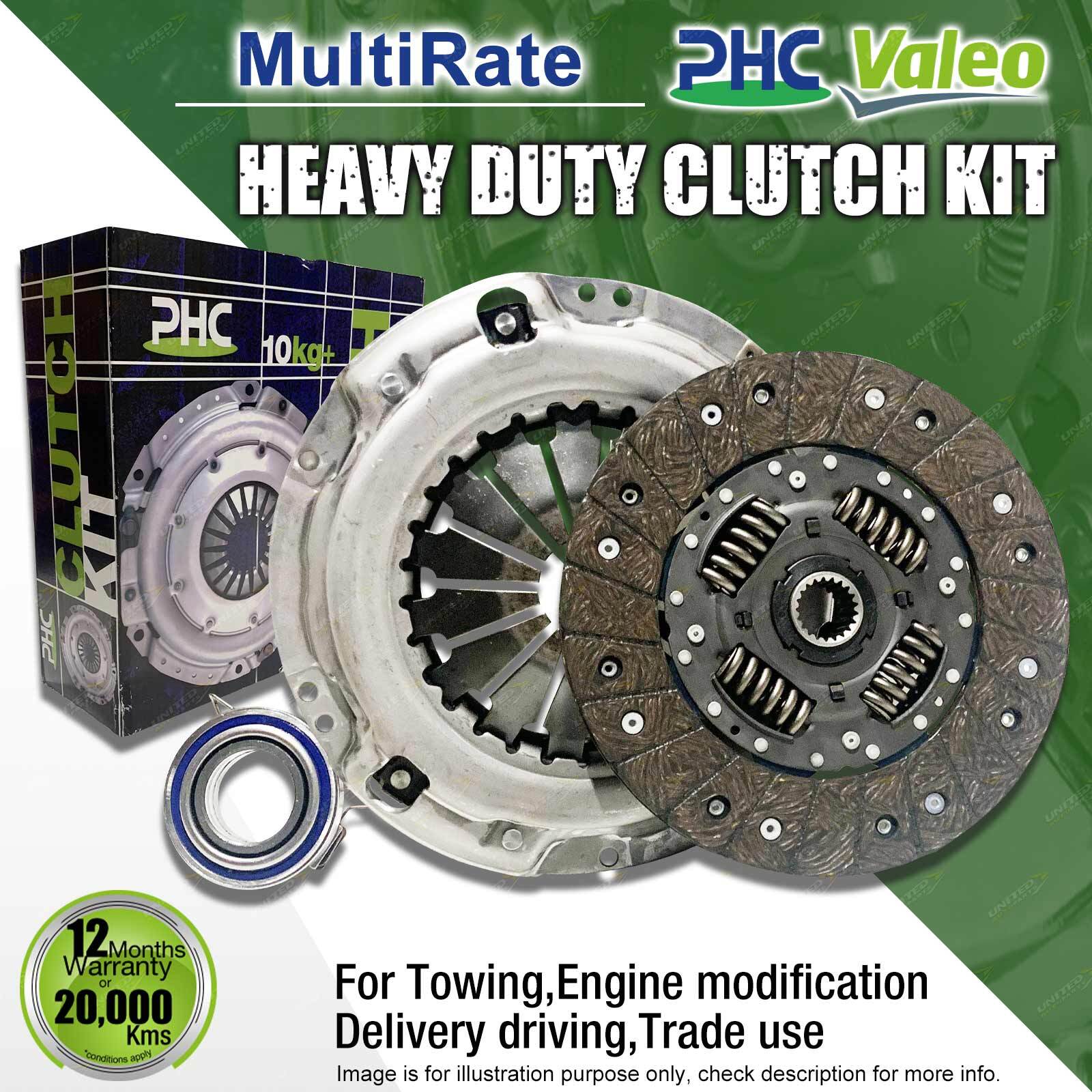

Contents : PHC Heavy Duty MultiRate Clutch Kit

Clutch Kit Includes :
Heavy duty cover assembly with 20% (typical) increase in torque capacity / clamp load
Clutch plate
Release bearing

More Information :
Feature & Benefit 1 : Heavy Duty Clutch Kit Suits OE Flywheel
Feature & Benefit 2 : Typical 20% Increase in Torque Capacity
Feature & Benefit 3 : 1 Year / 20,000KM Warranty

Tech Spec :
Weight [KG] : 7.054
Package Length [CM] : 28
Package Width [CM] : 27
Package Height [CM] : 10.5
Clutch Plate Dimensions : 225 x 21T x 29.0
Dual Mass Flywheel : Not Included
Solid Flywheel : Not Included
Flywheel Spec : 0.5
Concentric Slave Cylinder : Not Included
Spigot : RSB502
Alignment Tool : CAT180

Suit Vehicle : Toyota Hiace LH 51 61 70 71 Hilux LN 55 56 60 65

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit Vehicle:

Vehicle Make	Model Name	Series	Engine	Year
Toyota	Hiace	LH51, 1/83-8/88	2.4 Ltr Diesel, 2L	1983 - 1988
Toyota	Hiace	LH61, 1/83-7/88	2.4 Ltr Diesel, 2L	1983 - 1988
Toyota	Hiace	LH70, 1/83-8/88	2.4 Ltr Diesel, 2L	1983 - 1988
Toyota	Hiace	LH71, 1/83-8/88	2.4 Ltr Diesel, 2L	1983 - 1988
Toyota	Hilux	LN55, 11/83-8/85	2.2 Ltr Diesel, L	1983 - 1985
Toyota	Hilux	LN56, 4 Speed, 8/85-7/88	2.4 Ltr Diesel, 2L	1985 - 1988
Toyota	Hilux	LN60, 11/83-8/88	2.4 Ltr Diesel, 2L	1983 - 1988
Toyota	Hilux	LN65, 11/83-8/88	2.4 Ltr Diesel, 2L	1983 - 1988

1.PHC Heavy Duty Clutch Kit

Designed and manufactured to replace the clutch system installed as Original Equipment, a Heavy Duty replacement clutch kit features a torque capacity increase due to a higher clamp load. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit.

2.Product Feature

PHC Heavy Duty Clutch Kits are manufactured with a typical 20% increase in clamp load, resulting in an equivalent increase in torque capacity. Increasing clamp load by more than 20% can put the vehicles hydraulic system under stress, significantly reduce clutch system life and result in very high clutch pedal actuation effort.

3.About PHC

After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, we are a trusted source for a complete range of Clutch Kits suited to your vehicle.
