PHC HD Sprung Clutch Kit for Toyota Corolla AE80 81 91 EE090 100 111 II EL41 51

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

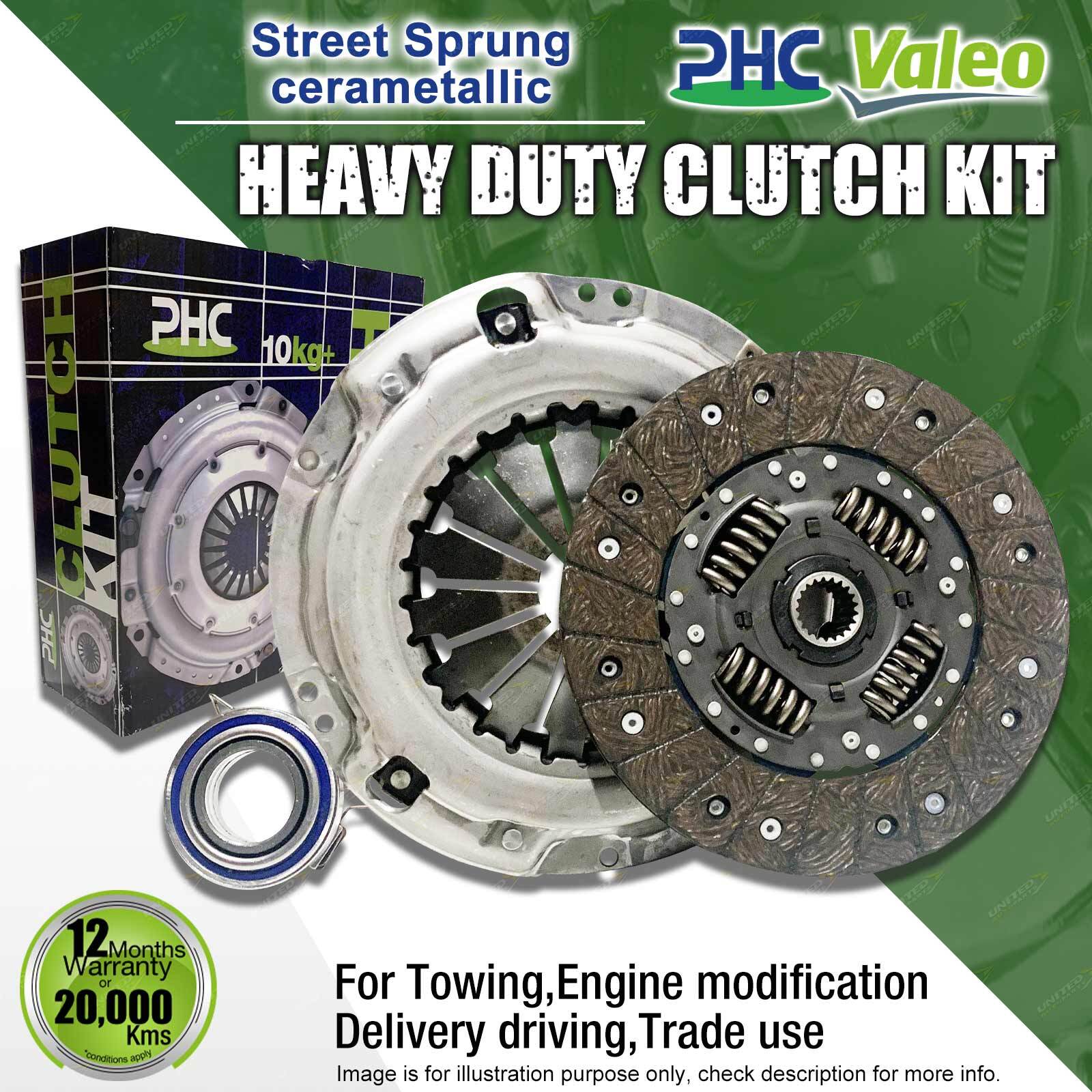

Contents : PHC Heavy Duty Clutch Kit

Clutch Kit Include :
Heavy duty cover assembly with 20% (typical) increase in torque capacity / clamp load
Upgraded cerametallic clutch plate to handle high torque applications (with reduced street driveability due to aggressive friction material)
Release bearing

Clutch Material : Street Sprung cerametallic

Parameter :
Clutch Plate Dimensions:200 x 21T x 23.8
Torque Capacity: Peak 343Nm, Rated 274Nm
Flywheel Spec:0.5

Suit : Toyota Corolla AE80 81 91 EE090 100 111 II EL41 51

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Suit :

Make	Model/Submodel	Engine	Series	Output	Notes	Year
Toyota	Cera EXY10	1.5 Ltr	5E-FE			01/1995-12/1996
Toyota	Corolla AE80	1.3 Ltr	2A-C			04/1985-05/1989
Toyota	Corolla AE81	1.5 Ltr	3A			05/1983-04/1987
Toyota	Corolla AE82	1.6 Ltr DOHC	4A-GE			01/1986-05/1989
Toyota	Corolla AE82	1.6 Ltr	4A-C		Aust Model	04/1985-05/1989
Toyota	Corolla AE91	1.5 Ltr	5A-F			05/1987-05/1989
Toyota	Corolla EE090	1.3 Ltr		53KW	New Zealand Only	05/1987-06/1991
Toyota	Corolla EE100	1.3 Ltr			New Zealand Only	01/1992-12/1997
Toyota	Corolla EE111	1.3 Ltr	4E-FE	65KW	New Zealand Only	05/1995-07/2000
Toyota	Corolla EL53	1.5 Ltr	5E-FE	70KW	New Zealand Only	09/1994-08/1999
Toyota	Corolla II EL41	1.3 Ltr DOHC	4E-FE			09/1990-12/1994
Toyota	Corolla II EL51	1.3 Ltr DOHC	4E-FE			09/1994-12/1998

1.PHC Heavy Duty Clutch Kit

Designed and manufactured to replace the clutch system installed as Original Equipment, a Heavy Duty replacement clutch kit features a torque capacity increase due to a higher clamp load. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit.

2.Product Feature

PHC Heavy Duty Clutch Kits are manufactured with a typical 20% increase in clamp load, resulting in an equivalent increase in torque capacity. Increasing clamp load by more than 20% can put the vehicles hydraulic system under stress, significantly reduce clutch system life and result in very high clutch pedal actuation effort.

3.About PHC

After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, we are a trusted source for a complete range of Clutch Kits suited to your vehicle.
