PHC Sprung Clutch Kit for Hino FD FF FT GD KL KR LA LB W06E EC 100 EH 300 700
Description

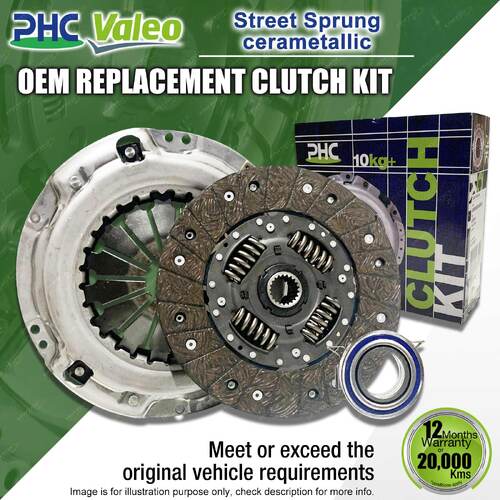

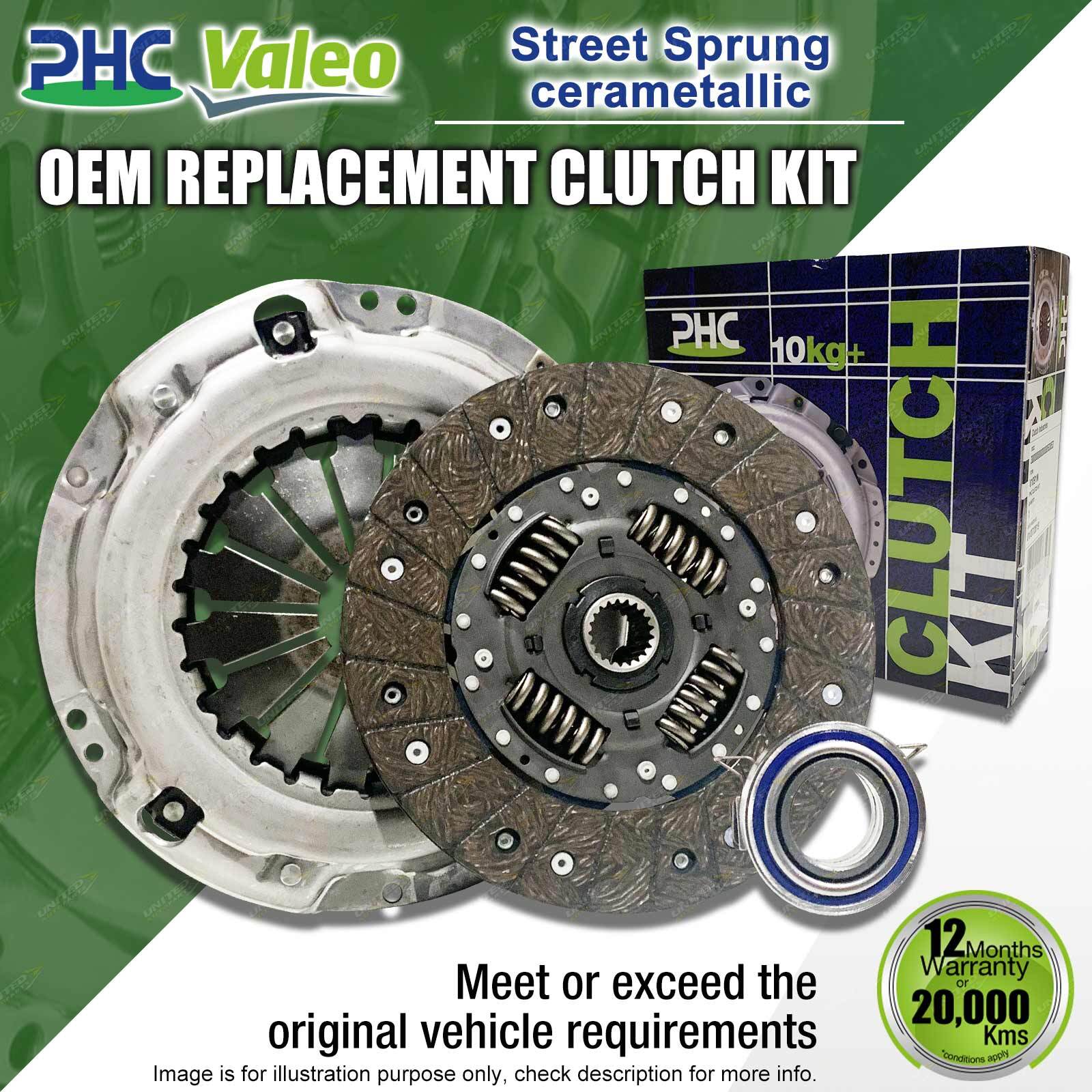

Contents : PHC Sprung Clutch Kit
Clutch Kit Includes :
Cover assembly
Upgraded cerametallic clutch plate to handle high torque applications (with reduced street driveability due to aggressive friction material)
Release bearing
More Information :
Feature 1 : Clutch Kit Suits OE Flywheel
Feature 2 : Meets or Exceeds OE Standards
Feature 3 : 1 Year / 20,000KM Warranty
Tech Spec :
Weight (KG) : 18.7
Package Length (CM) : 40
Package Height (CM) : 18.5
Package Width (CM) : 40
Clutch Plate Dimensions : 300 x 12T x 28.0
Dual Mass Flywheel : Not Included
Solid Flywheel : Not Included
Concentric Slave Cylinder : Not Included
Spigot : RSB504
Torque Capacity : Meets or Exceeds OE Specs
Suit Vehicle : Hino FD FF FT GD KL KR LA LB W06E EC 100 EH 300 700
Features
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2023 United Autoparts. All rights reserved.
Suit Vehicle:
| Vehicle Make | Model | Engine Series | Year |
|---|---|---|---|
| HINO | FD SERIES | 6.0L W06E FD166, 6 Speed | 01/1984 - 12/1993 |
| HINO | FD SERIES | 6.4L EH700 FD171, 6 Speed | 01/1982 - 12/1986 |
| HINO | FD SERIES | 6.4L EH700 FD174, 6 Speed | 01/1982 - 12/1986 |
| HINO | FD SERIES | 6.4L EH700 FD176, 6 Speed | 01/1982 - 12/1986 |
| HINO | FD SERIES | 6.4L EH700 FD179, 6 Speed | 01/1982 - 12/1986 |
| HINO | FF SERIES | 6.4L EH700 FF177 | 01/1982 - 12/1986 |
| HINO | FF SERIES | 6.4L EH700 FF177TS | 01/1982 - 12/1986 |
| HINO | FF SERIES | 6.4L EH700 FF177TSG | 01/1982 - 12/1986 |
| HINO | FT SERIES | 6.0L W06E FT163, LH05 5 Speed | 01/1986 - 12/1992 |
| HINO | FT SERIES | 6.0L W06E FT165 4WD | 01/1986 - 12/1992 |
| HINO | FT SERIES | 6.4L EH700 FT166 | 01/1986 - 12/1992 |
| HINO | GD SERIES | 6.4L EH700 GD171, 6 Speed | 01/1982 - 12/1986 |
| HINO | GD SERIES | 6.4L EH700 GD179, 6 Speed | 01/1982 - 12/1986 |
| HINO | GT SERIES | 6.4L EH700 GT175K | 01/1987 - 12/1992 |
| HINO | KL SERIES | 5.0L EC100 KL300, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL321, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL340, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL360, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL380, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL400, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL421, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 5.0L EC100 KL440, 5 Speed | 01/1977 - 12/1983 |
| HINO | KL SERIES | 6.4L EH700 KL501 | 01/1980 - 1980 |
| HINO | KL SERIES | 6.4L EH700 KL521 | 01/1980 - 1980 |
| HINO | KL SERIES | 6.4L EH700 KL541 | 01/1980 - 1980 |
| HINO | KL SERIES | 6.4L EH700 KL561 | 01/1980 - 1980 |
| HINO | KL SERIES | 6.4L EH700 KL581 | 01/1980 - 1980 |
| HINO | KR SERIES | 5.0L EC100 KR120 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR220 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR300 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR320 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR360 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR400 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR420 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.0L EC100 KR460 | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.9L EH100 KR300, 5 Speed | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.9L EH100 KR320, 5 Speed | 01/1977 - 12/1983 |
| HINO | KR SERIES | 5.9L EH100 KR360, 5 Speed | 01/1977 - 12/1983 |
| HINO | LA SERIES | 5.9L EH100 LA540, 5 Speed | 01/1977 - 12/1982 |
| HINO | LA SERIES | 5.9L EH100 LA560, 5 Speed | 01/1977 - 12/1982 |
| HINO | LB SERIES | 6.2L EH300 LB500, 5 Speed | 01/1977 - 12/1982 |
| HINO | LB SERIES | 6.2L EH300 LB520, 5 Speed | 01/1977 - 12/1982 |
| HINO | LB SERIES | 6.2L EH300 LB560, 5 Speed | 01/1977 - 12/1982 |
1.PHC Standard Clutch Kit
Designed and manufactured to replace the clutch system installed as Original Equipment, a PHC standard replacement clutch kit is the reliable choice. Each component has been thoroughly tested and developed for a specific application. This range provides a Quality Assured replacement part that will meet or exceed the requirements of the original unit.
2.Product Advantage
Each component has been thoroughly tested and developed for specific field applications within the Australian and New Zealand market place.
Maximum durability
More aggressive clutch feel
Meet Or Exceed Original Equipment clutch
Friction clutch plate with low wear, high coefficient of friction
3.About PHC
After 60 years of experience in developing and manufacturing clutch kits for OEM and Aftermarket use, we are a trusted source for a complete range of Clutch Kits suited to your vehicle.
Specifications
| SKU | CI-PHCSTD-U2110-CA0163 |
| Brand | PHC |
| Shipping Weight | 15.0000kg |
