Premium Armor 3 Loop Bullbar Lights Winch for Toyota Landcruiser 105 Series SYD
Description
4X4FORCE bull bars help protect your vehicle from animal strikes when driving on remote roads, and provide convenient locations to mount other 4x4 accessories such as winches, lights and aerials. 4X4FORCE bull bar is carefully crafted from premium grade materials and components to deliver the most comprehensive frontal protection and styling available. Each 4X4FORCE bull bar is specifically designed to complement the unique contours of individual vehicle models. This ensures the best possible fit, look and functionality for a particular vehicle. All 4X4FORCE bars are finished in a durable powder coat. |
|
| Features:
Winch compatible |
 |
4X4FORCE LED Light is Your Wise Choice. Using a special design of the LED constant current source power supply circuit, the performance is very stable, long life, 50,000 hours, the protection of the environment, you can enjoy using it.Each light has using OSRAM P8 chip, and it is durable, low power consumption. Safe to use. |
|
| Features:
* Lifespan: up to 50,000 h |
 |
WINCH'S CLASSIFICATION AND FEATURES
13500LB WINCH SPECIFICATIONS
| Rated Line Pull | 13500LBS (6123kgs) single line |
| Control | Wireless Remote |
| Gear train | 3 Stage Planetary |
| Packing Size | 590 x 315 x 230mm |
| 1.8m Negative Pole Cable | |
| Control Box with 3 x 0.45cm Cables + 1 x 1.8m Long Cable | |
| Power Switch + 2m 3-Pin Plug Extension Cord + 32cm Cable + Switch Mounting Bracket | |
PULL. SPEED. AMPERES. VOLTS
| Line pull lbs(kgs] | Line speed ft/min(m/min) | Current A |
| 0 | 24.9(7.6) | 70 |
| 1500(680) | 17.1(5.2) | 160 |
| 3500(1588) | 11.5(3.5) | 220 |
| 5500(2495) | 9.2(2.8) | 260 |
| 7500(3402) | 7.9(2.4) | 310 |
| 13500(6123) | 6.2(1.9) | 380 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 13500(6123) | 13(5) |
| 2 | 10200(4636) | 23(11) |
| 3 | 8705(3956) | 69(21) |
| 4 | 7310(3323) | 92(28) |
Features
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2025 United Autoparts. All rights reserved.
Contents:

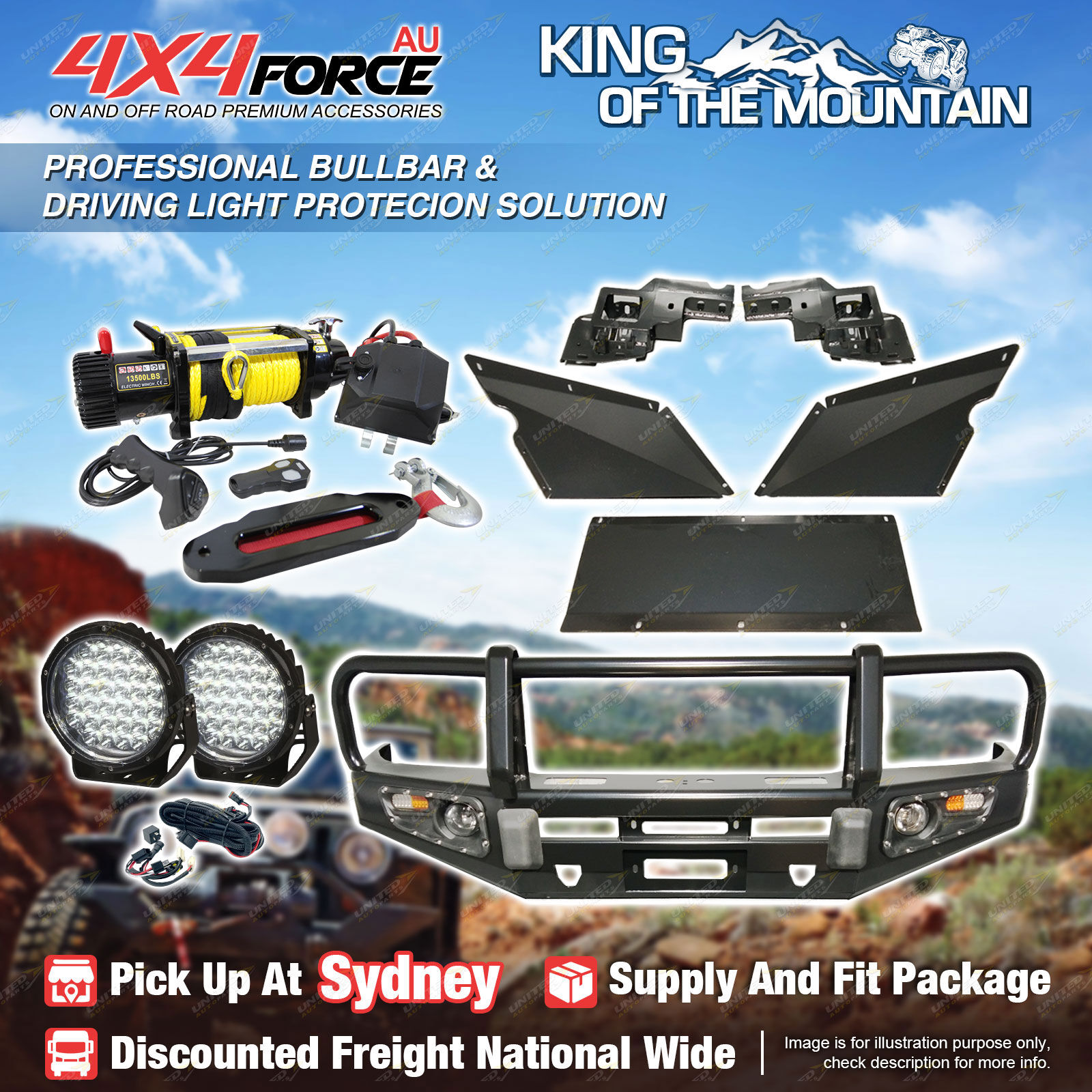

1 Set 4X4FORCE Front Premium Armor 3 Loop Bumper Bullbar
Pair 4X4FORCE 9 Inch Solid Round LED Driving Light 7900 Lumen
1 Set 4X4FORCE 2-Way Deutsch Wiring Loom Harness Kit With Flush Mountable ON/OFF Switch
4X4FORCE Electricity 4WD Recovery Winch Kit
Suits: Toyota Landcruiser 105 Series
Parameter(Bull Bar):
| Style: 3 Loop | Material: Heavy Duty Steel ; Powder Coated |
Parameter(Light):
| Photometrici(LX): 1 LUX@1150M | LED Lifespan:50,000 Hour |
| Lumen(Each): 7900LM | Ingress Rating: IP68 |
| Required Voltage: 9.0V,32.0V | Pemp Colour: 6500K |
| Power(Each): 160W | Voltage: 12V/24V |
| Beam Patttern:Spot + Flood | Qty(Each Light): 32 Pcs Leds |
Parameter(Wire Kit):
| Length: 2-Meter | Switch Relay:12V DC 40A |
| Blade Fuse: 25A | Feature: 2 Way Deutsch |
| Switch Type: Flush Mountable on/off | Wire#:12# |
Specifications
| SKU | 4X4FORCE-BLW-US2412-KA193 |
| Brand | Stock |
