Spring shackle bushing for FORD TRANSIT FA_ FB_ FC_ FD_ FS_ FZ_ FM_ FN_ VH VJ

Calculate Shipping

Local Pickup - $0.00
Pickup from Sydney Warehouse

Australia Post-Eparcel - $0.00
Australia Post Parcel Post

Australia Express Post - $0.00

Description

Whiteline Chassis Control Bushings

Our engineered "Synthetic Elastomer" bushings feature the quality ride of rubber at lower speeds and at higher speeds react when under cornering, accelerating and braking loads, for CHASSIS CONTROL and improved handling.

No compromise - Advanced designs, material technologies and extensive testing ensures minimal effects on ride quality and maximum effects on handling precision.

Unique design and material technology for improved articulation, performance, vibration and noise dampening!

Whiteline bushings deliver precision handling when you need it with uncompromised ride quality!

The advanced synthetic elastomer characteristics ensure superior elasticity, memory and outright durability for all forms of driving applications!

Benefits :

Resistant to chemicals, oils and weathering.
Enhanced handling, steering response and road holding stability.
Increased braking capacities and positive brake pedal 'feel'.
Wheel alignment rectification and optimisation using offset and adjustable bushings and arms.

Whiteline boasts a worldwide reputation as a leading manufacturer of replacement, enhancement and performance suspension components that deliver significant gains in vehicle balance, steering precision, grip levels and outright driving performance.

What makes Whiteline different?

Unique Products - Whiteline is the only brand globally to market a full range of undercar chassis and suspension components that complements your spring and damper/ shock absorber set up. Simply, it is a tuned system and not a collective of various brands. We provide sway bar & lowering springs solutions.

Activate more grip - Engineered to activate more grip for improved handling and outright performance, Whiteline products are rigorously tested on the track to provide unrivalled street performance!

No compromise - Advanced designs, material technologies and extensive testing ensures minimal effects on ride quality and maximum effects on handling precision.

Solutions - From automotive repair workshops to race teams, Whiteline offers proven product solutions to suspension and handling problems for many of the worlds vehicle platforms.

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

Content :

Whiteline Spring - shackle bushing

Warranty : 3 Year / 60,000Kms

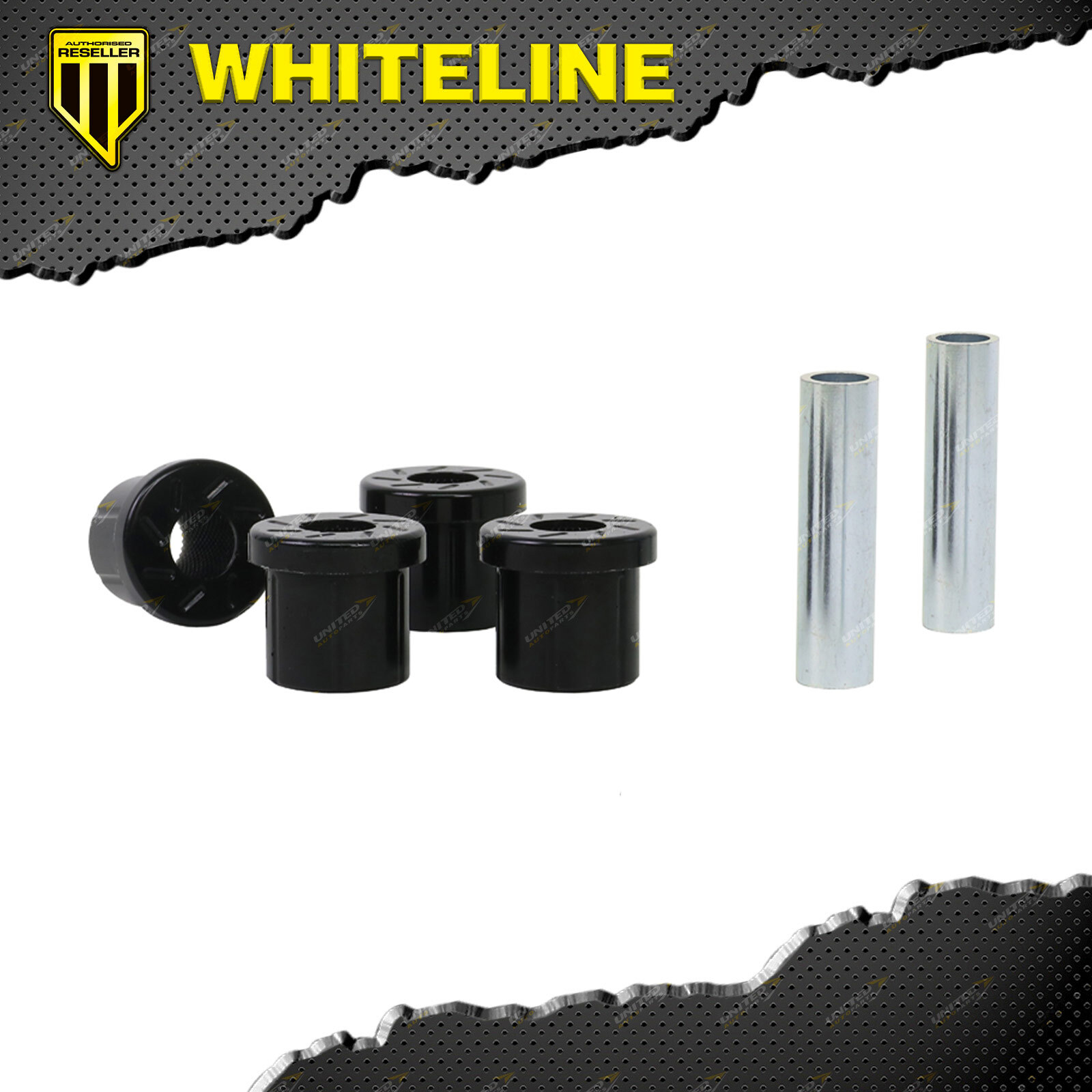

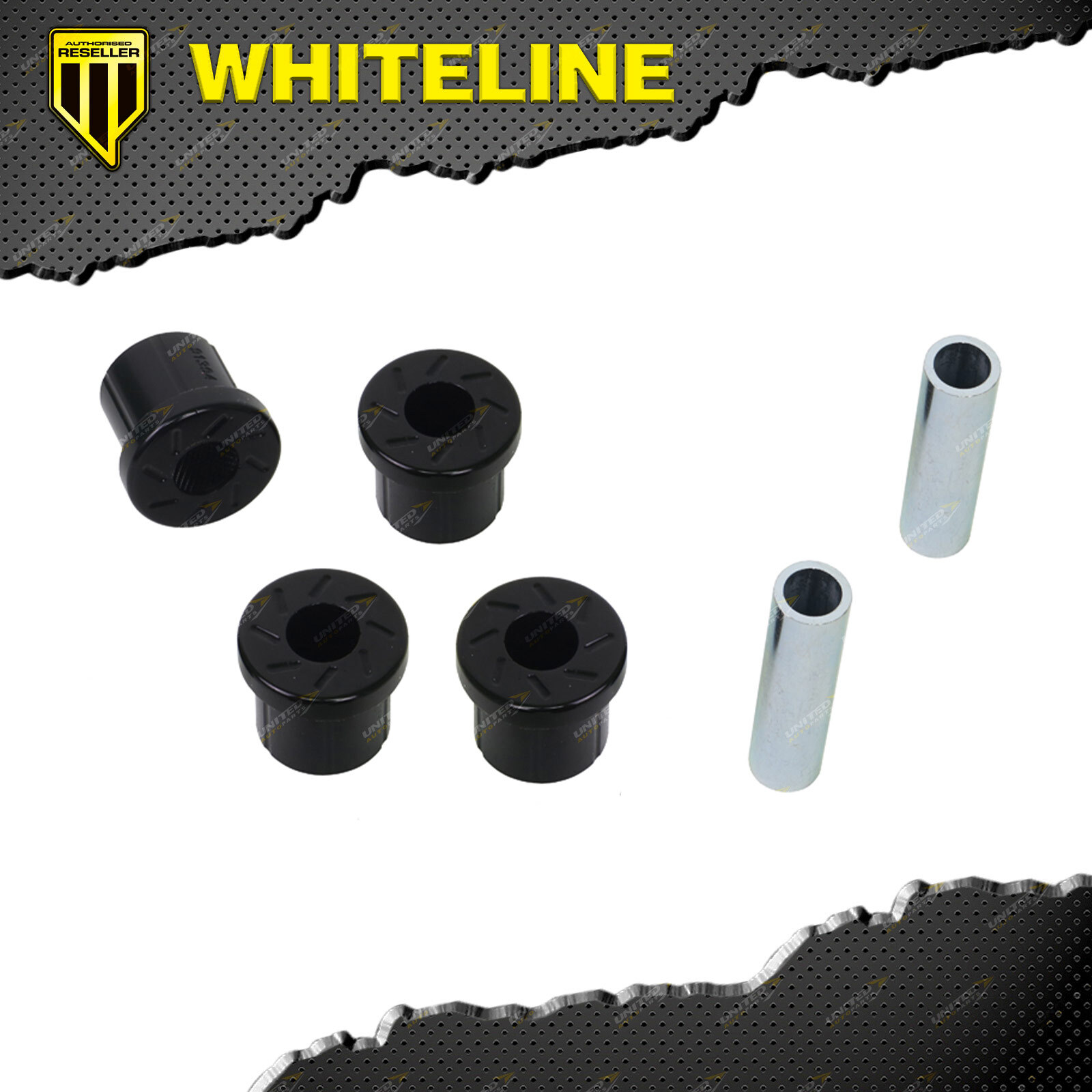

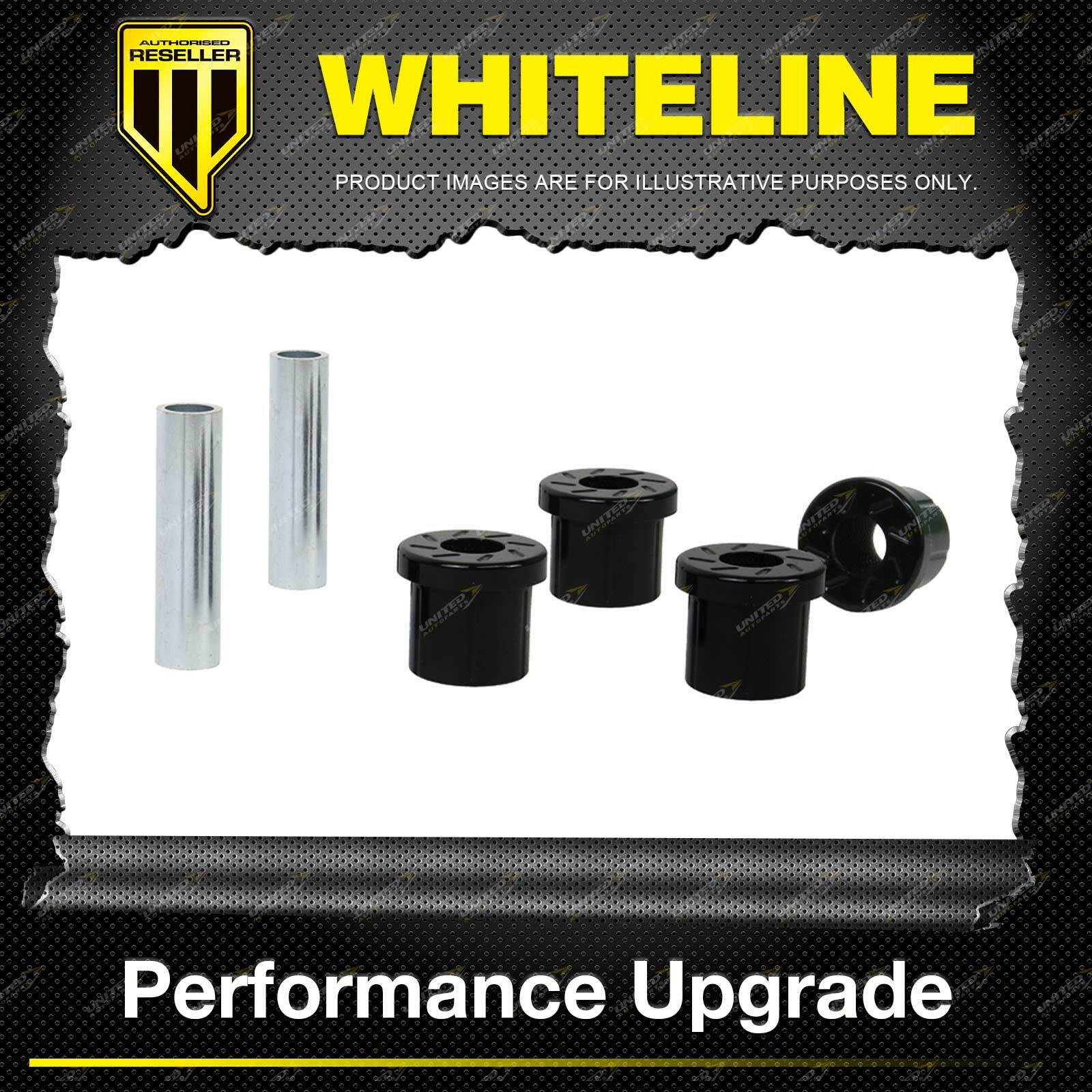

Kit Contents : 4 Bushings, 2 Tubes, Install Guide, Grease

Suit :

FORD TRANSIT TOURNEO FC_ _ 2 D3FA 4 Bus 6/2000-8/2003
FORD TRANSIT TOURNEO FC_ _ 2 FIFA 4 Bus 3/2002-3/2006
FORD TRANSIT FA_ _ 2.0 DI (FAE_, FAF_, FAG_) ABFA 4 Van 8/2000-5/2006
FORD TRANSIT FA_ _ 2.0 DI (FAE_, FAF_, FAG_) D3FA 4 Van 8/2000-5/2006
FORD TRANSIT FA_ _ 2.0 DI (FAE_, FAF_, FAG_) F3FA 4 Van 8/2000-5/2006
FORD TRANSIT FA_ _ 2.0 TDCi FIFA 4 Van 8/2002-5/2006
FORD TRANSIT FA_ _ 2.3 16V RWD (FAA_, FAB_, FAC_) E5FA,E5FC 4 Van 4/2001-5/2006
FORD TRANSIT FA_ _ 2.3 E5FA 4 Van 3/2001-3/2006
FORD TRANSIT FA_ _ 2.3 E5FC 4 Van 3/2001-3/2006
FORD TRANSIT FA_ _ 2.4 DI (FAA_, FAB_, FAC_, FAD_) D2FE,D2FB,D2FA 4 Van 1/2000-5/2006
FORD TRANSIT FA_ _ 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) D4FA 4 Van 1/2000-5/2006
FORD TRANSIT FA_ _ 2.4 DI RWD (FAA_, FAB_, FAC_, FAD_) F4FA 4 Van 1/2000-5/2006
FORD TRANSIT FA_ _ 2.4 TDCi H9FA 4 Van 3/2004-5/2006
FORD TRANSIT FA_ _ 2.4 TDE DOFA 4 Van 7/2001-5/2006
FORD TRANSIT FA_ _ 2.4 TDE FXFA 4 Van 3/2004-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.0 DI (F_E_, F_F_, F_G_) ABFA 4 Bus 8/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.0 DI (F_E_, F_F_, F_G_) D3FA 4 Bus 8/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.0 DI (F_E_, F_F_, F_G_) F3FA 4 Bus 8/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.0 TDCi (F_F_, F_E_, F_G_) FIFA 4 Bus 8/2002-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.3 16V RWD (F_B_, F_C_, F_A_) E5FA,E5FC 4 Bus 8/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.4 DI (F_B_, F_C_, F_A_) D2FE,D2FB,D2FA 4 Bus 1/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.4 DI RWD (F_B_, F_C_) F4FA 4 Bus 1/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.4 DI RWD (F_B_, F_C_, F_A_) D4FA 4 Bus 1/2000-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.4 TDCi H9FA 4 Bus 3/2004-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.4 TDE (F_C_, F_B_, F_A_) DOFA 4 Bus 7/2001-5/2006
FORD TRANSIT FB_ _,FC_ _,FD_ _,FS_ _,FZ_ _ 2.4 TDE FXFA 4 Bus 3/2004-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.0 DI (F_E_, F_F_) ABFA 4 Cab Chassis 8/2000-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.0 DI (F_E_, F_F_) D3FA 4 Cab Chassis 8/2000-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.0 DI (F_E_, F_F_) F3FA 4 Cab Chassis 8/2000-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.0 TDCi (F_E_, F_F_) FIFA 4 Cab Chassis 8/2002-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.3 16V (F_A_, F_B_, F_C_, F_D_) E5FA,E5FC 4 Cab Chassis 4/2001-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.4 DI (F_A_, F_B_, F_C_, F_D_) D2FE,D2FB,D2FA 4 Cab Chassis 1/2000-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.4 DI (F_A_, F_B_, F_C_, F_D_) D4FA 4 Cab Chassis 1/2000-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.4 DI (F_A_, F_B_, F_C_, F_D_) F4FA 4 Cab Chassis 1/2000-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.4 TDCi H9FA 4 Cab Chassis 3/2004-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.4 TDE DOFA 4 Cab Chassis 7/2001-5/2006
FORD TRANSIT FM_ _,FN_ _ 2.4 TDE FXFA 4 Cab Chassis 3/2004-5/2006
FORD TRANSIT VH,VJ 2.3 E5FA,E5FC 4 Bus 8/2000-9/2006
FORD TRANSIT VH,VJ 2.3 E5FA 4 Cab Chassis 8/2000-9/2006
FORD TRANSIT VH,VJ 2.3 E5FA 4 Van 8/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D D2FA 4 Bus 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D D2FA 4 Cab Chassis 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D D2FA 4 Van 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D D4FA 4 Bus 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D D4FA 4 Cab Chassis 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D D4FA 4 Cab Chassis 8/2000-8/2003
FORD TRANSIT VH,VJ 2.4 D D4FA 4 Van 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D DOFA 4 Bus 7/2001-9/2006
FORD TRANSIT VH,VJ 2.4 D DOFA 4 Cab Chassis 7/2001-9/2006
FORD TRANSIT VH,VJ 2.4 D DOFA 4 Van 7/2001-9/2006
FORD TRANSIT VH,VJ 2.4 D F4FA 4 Bus 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D F4FA 4 Cab Chassis 1/2000-9/2006
FORD TRANSIT VH,VJ 2.4 D FXFA 4 Bus 3/2004-9/2006
FORD TRANSIT VH,VJ 2.4 D FXFA 4 Cab Chassis 3/2004-7/2006
FORD TRANSIT VH,VJ 2.4 D H9FA 4 Bus 3/2004-9/2006
FORD TRANSIT VH,VJ 2.4 D H9FA 4 Cab Chassis 3/2004-9/2006
:

Kit Specifications :

Bush Type :1

Bush Qty :4

OD A : 33 mm

ID B : 19 mm

LC : 37.5 mm

FL D : 8 mm

FLOD E : 43.2 mm

C/Tube QTY : 2

C/Tube Size : 19x14.3x76 mm

A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Whiteline's signature black bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.
