Ultimate Bullbar Light Side Step Winch for Toyota Landcruiser 79 Single Cab SYD
Description
4X4FORCE bull bars help protect your vehicle from animal strikes when driving on remote roads, and provide convenient locations to mount other 4x4 accessories such as winches, lights and aerials. 4X4FORCE bull bar is carefully crafted from premium grade materials and components to deliver the most comprehensive frontal protection and styling available. Each 4X4FORCE bull bar is specifically designed to complement the unique contours of individual vehicle models. This ensures the best possible fit, look and functionality for a particular vehicle. All 4X4FORCE bars are finished in a durable powder coat. |
|
| Features:
Winch compatible |
 |
4X4FORCE LED Light is Your Wise Choice. Using a special design of the LED constant current source power supply circuit, the performance is very stable, long life, 50,000 hours, the protection of the environment, you can enjoy using it.Each light has using OSRAM P8 chip, and it is durable, low power consumption. Safe to use. |
|
| Features:
* Lifespan: up to 50,000 h |
 |
WINCH'S CLASSIFICATION AND FEATURES
13500LB WINCH SPECIFICATIONS
| Rated Line Pull | 13500LBS(6123kgs) single line |
| Motor | 5.3kw/7.2hp, series wound |
| Control | Remote switch, 9.8ft(3m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 265:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Automatic In-The-Drum |
| Drum Size | Φ2.5"(64)mm x (8.8")223.5mm |
| Cable | Φ9.3mm x 26m |
| Overall Dimensions | 19.8"x6.3"x8.5"(529mm x 160mm x 217mm) |
| Mounting Bolt Pattern | 255mm x 114mm Φ 11 |
| Weight | N.W.25kg G.W.26Kg |
| Packing Size | 615 x 355 x 265mm |
PULL. SPEED. AMPERES. VOLTS
| Line pull lbs(kgs] | Line speed ft/min(m/min) | Current A |
| 0 | 24.9(7.6) | 70 |
| 1500(680) | 17.1(5.2) | 160 |
| 3500(1588) | 11.5(3.5) | 220 |
| 5500(2495) | 9.2(2.8) | 260 |
| 7500(3402) | 7.9(2.4) | 310 |
| 13500(6123) | 6.2(1.9) | 380 |
LINE PULL AND ROPE CAPACITY IN LAYER
| Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
| 1 | 13500(6123) | 13(5) |
| 2 | 10200(4636) | 23(11) |
| 3 | 8705(3956) | 69(21) |
| 4 | 7310(3323) | 92(28) |
4X4FORCE Steel Side Steps & Brush Rail Bars Rock Sliders is Manufactured Using Heavy Duty Steel and This Means a Heavy Duty Construction That Can Most Offorad Incidents, Giving Your Side Seals the Maximum Protection, Unlike Aluminum Side Steps. The Frame is Powder Coated in Order to Prevent Rust And Corrosion. |
|
| Features:
Black Powder Coated Finish - Longer Lasting |
 |
Features
Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.
Copyright © 2014 - 2025 United Autoparts. All rights reserved.

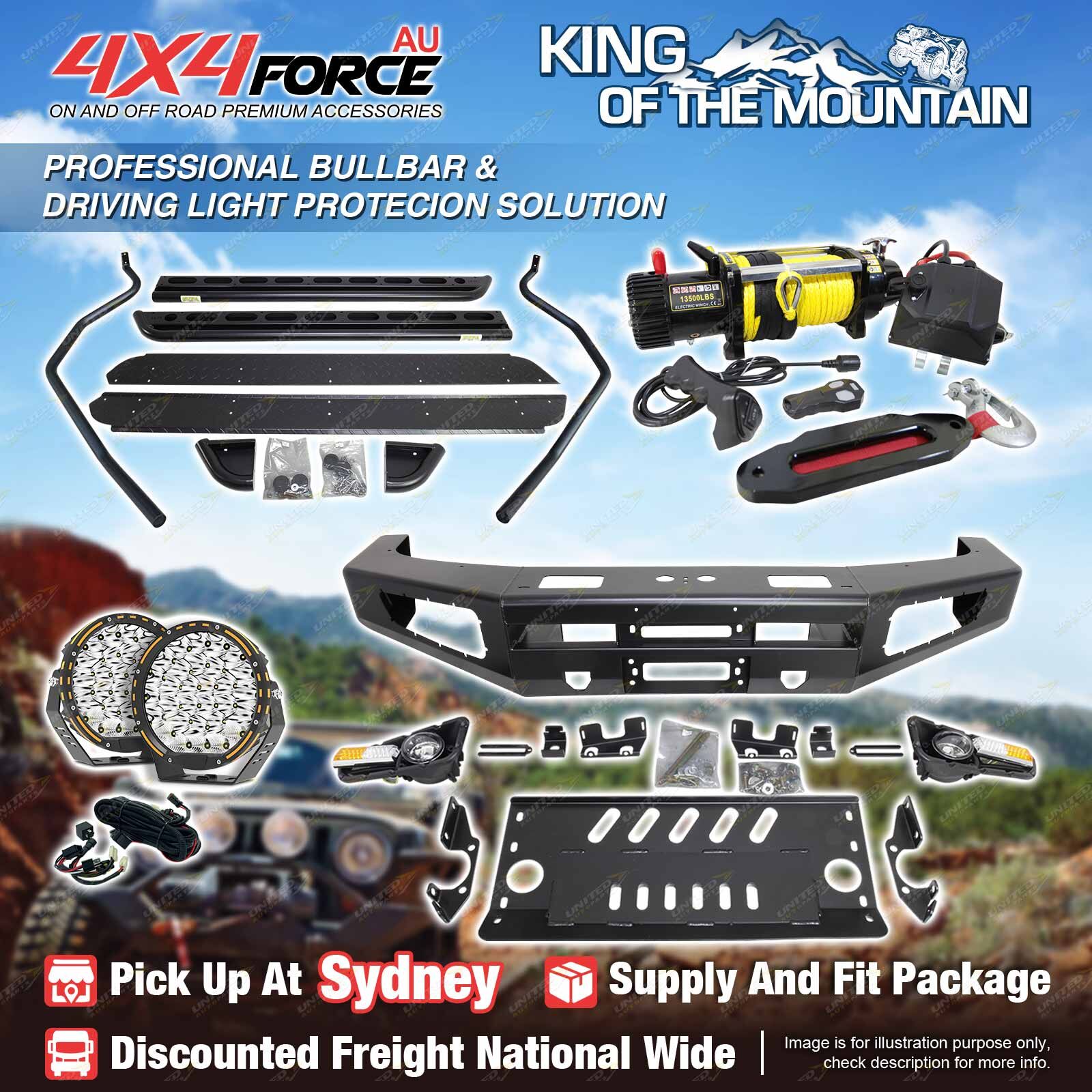

Contents:
1 Set 4X4FORCE Front Ultimate Guard No Loop Bumper Bullbar
Pair 4X4FORCE 9 Inch Solid Round LED Driving Light 7900 Lumen
1 Set 4X4FORCE 2-Way Deutsch Wiring Loom Harness Kit With Flush Mountable ON/OFF Switch
1 Set 4X4FORCE Steel Side Steps & Brush Rail Bars Rock Sliders
4X4FORCE Electricity 4WD Recovery Winch Kit
Suits: Toyota Landcruiser 79 Single Cab Series 2007-2016
Parameter(Bull Bar):
| Style: No Loop | Material: Heavy Duty Steel ; Powder Coated |
Parameter(Light):
| Photometrici(LX): 1 LUX@1150M | LED Lifespan:50,000 Hour |
| Lumen(Each): 7900LM | Ingress Rating: IP68 |
| Required Voltage: 9.0V,32.0V | Pemp Colour: 6500K |
| Power(Each): 160W | Voltage: 12V/24V |
| Beam Patttern:Spot + Flood | Qty(Each Light): 32 Pcs Leds |
Parameter(Wire Kit):
| Length: 2-Meter | Switch Relay:12V DC 40A |
| Blade Fuse: 25A | Feature: 2 Way Deutsch |
| Switch Type: Flush Mountable on/off | Wire#:12# |
Parameter(Side Step):
| Kit Comes with brackets, bolts | Material:Heavy Duty Steel ; Black Powder Coated |
Specifications
| SKU | 4X4FORCE-BLWSUS2412-KA132 |
| Brand | Stock |
