Description

4X4FORCE bull bars help protect your vehicle from animal strikes when driving on remote roads, and provide convenient locations to mount other 4x4 accessories such as winches, lights and aerials.

4X4FORCE bull bar is carefully crafted from premium grade materials and components to deliver the most comprehensive frontal protection and styling available.

Each 4X4FORCE bull bar is specifically designed to complement the unique contours of individual vehicle models. This ensures the best possible fit, look and functionality for a particular vehicle. All 4X4FORCE bars are finished in a durable powder coat.

Features:

Winch compatible
Parker / Indicator included
A-Frame triple loop design
Tough polyurethane bumpers
Steel construction

4X4FORCE LED Light is Your Wise Choice.

These impressive looking 9 solid LED driving lights are durable and produce 7,900 lumens of super-bright white light each.Using a special design of the LED constant current source power supply circuit, the performance is very stable, long life, 50,000 hours, the protection of the environment, you can enjoy using it.Each light has using 32x5W premium PMMA lens, and it is durable, low power consumption. Safe to use.

Features:

* Lifespan: up to 50,000 h
* Easy to install
* IP68 dust & Waterproof
* Heavy duty powdercoated steel mount
* Extended illumination distance
* Blistering bright performance
* Combo Beam

WINCH'S CLASSIFICATION AND FEATURES

13500LB WINCH SPECIFICATIONS

Rated Line Pull	13500LBS (6123kgs) single line
Motor	5.3kw/7.2hp, series wound
Control	Remote switch, 9.8ft(3m)lead
Gear train	3 Stage Planetary
Gear train ratio	265:1
Clutch	Sliding Ring Gear
Braking Action	Automatic In-The-Drum
Drum Size	Φ2.5"(64)mm x (8.8")223.5mm
Cable	Φ9.3mm x 26m
Overall Dimensions	19.8"x6.3"x8.5"(529mm x 160mm x 217mm)
Mounting Bolt Pattern	255mm x 114mm Φ 11
Weight	N.W.25kg G.W.26Kg
Packing Size	615 x 355 x 265mm

PULL. SPEED. AMPERES. VOLTS

Line pull lbs(kgs]	Line speed ft/min(m/min)	Current A
0	24.9(7.6)	70
1500(680)	17.1(5.2)	160
3500(1588)	11.5(3.5)	220
5500(2495)	9.2(2.8)	260
7500(3402)	7.9(2.4)	310
13500(6123)	6.2(1.9)	380

LINE PULL AND ROPE CAPACITY IN LAYER

Layer	Rated Line Pull lbs(kgs)	Total Rope on Drum ft(m)
1	13500(6123)	13(5)
2	10200(4636)	23(11)
3	8705(3956)	69(21)
4	7310(3323)	92(28)

Features

Note: eBay's compatibility table is not accurate in some cases. Please refer to the following information we have provided for you.

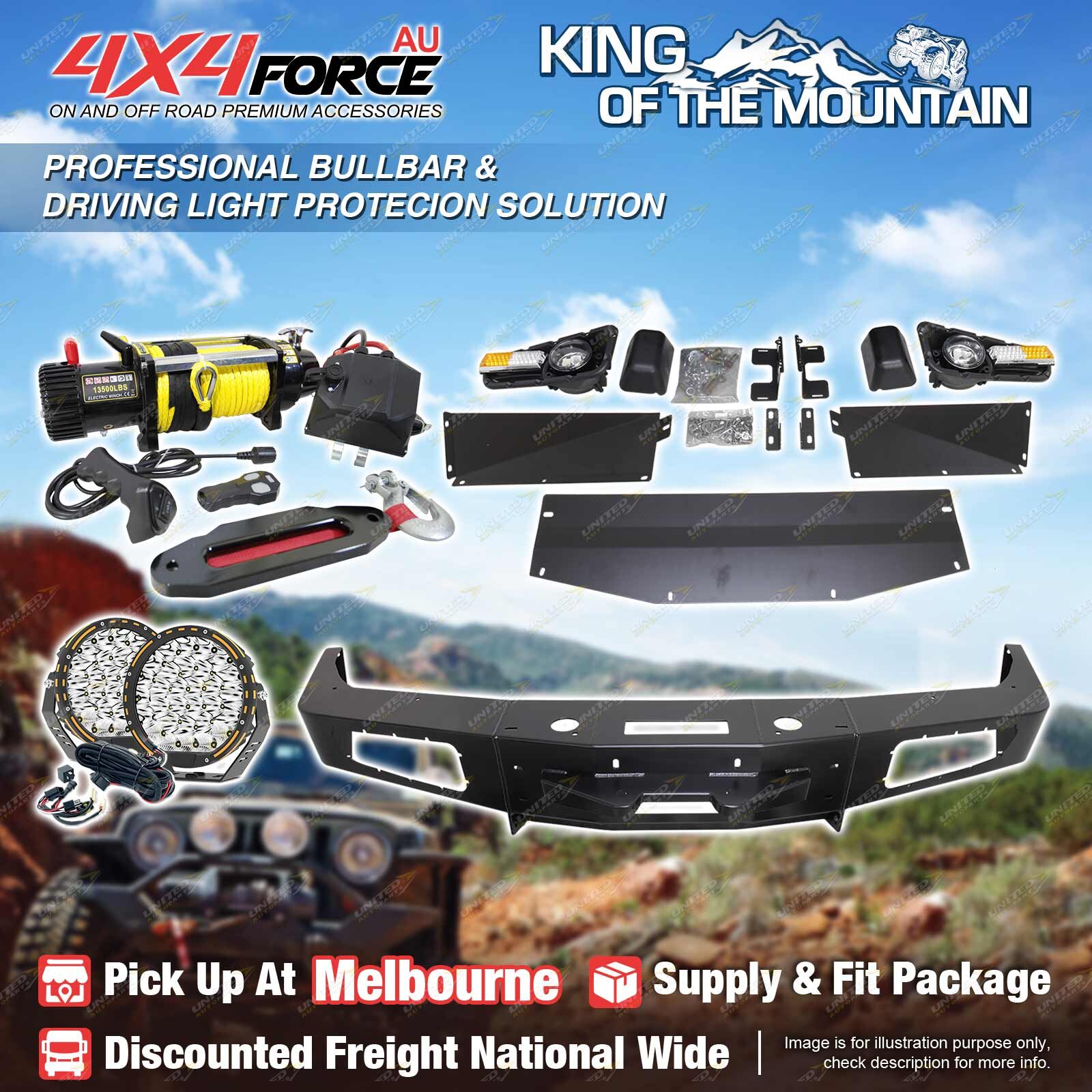

Contents:

1 Set 4X4FORCE Front Ultimate Guard No Loop Bumper Bullbar

Pair 4X4FORCE 9 Inch Solid Round LED Driving Light 7900 Lumen

1 Set 4X4FORCE 2-Way Deutsch Wiring Loom Harness Kit With Flush Mountable ON/OFF Switch

4X4FORCE Electricity 4WD Recovery Winch Kit

Suits: Toyota Landcruiser 80 Series

Parameter(Bull Bar):

Style: No Loop

Material: Heavy Duty Steel ; Powder Coated

Parameter(Light):

Photometrici(LX): 1 LUX@1150M	LED Lifespan:50,000 Hour
Lumen(Each): 7900LM	Ingress Rating: IP68
Required Voltage: 9.0V,32.0V	Pemp Colour: 6500K
Power(Each): 160W	Voltage: 12V/24V
Beam Patttern:Spot + Flood	Qty(Each Light): 32 Pcs Leds
