Whiteline Front + Rear Grip Series Kit for Volkswagen Golf MK7 ALLTRACK R 5G

Content :

Whiteline Front + Rear Grip Series Kit

Quantity In Package : 2

Warranty : 3 Year / 60,000Kms

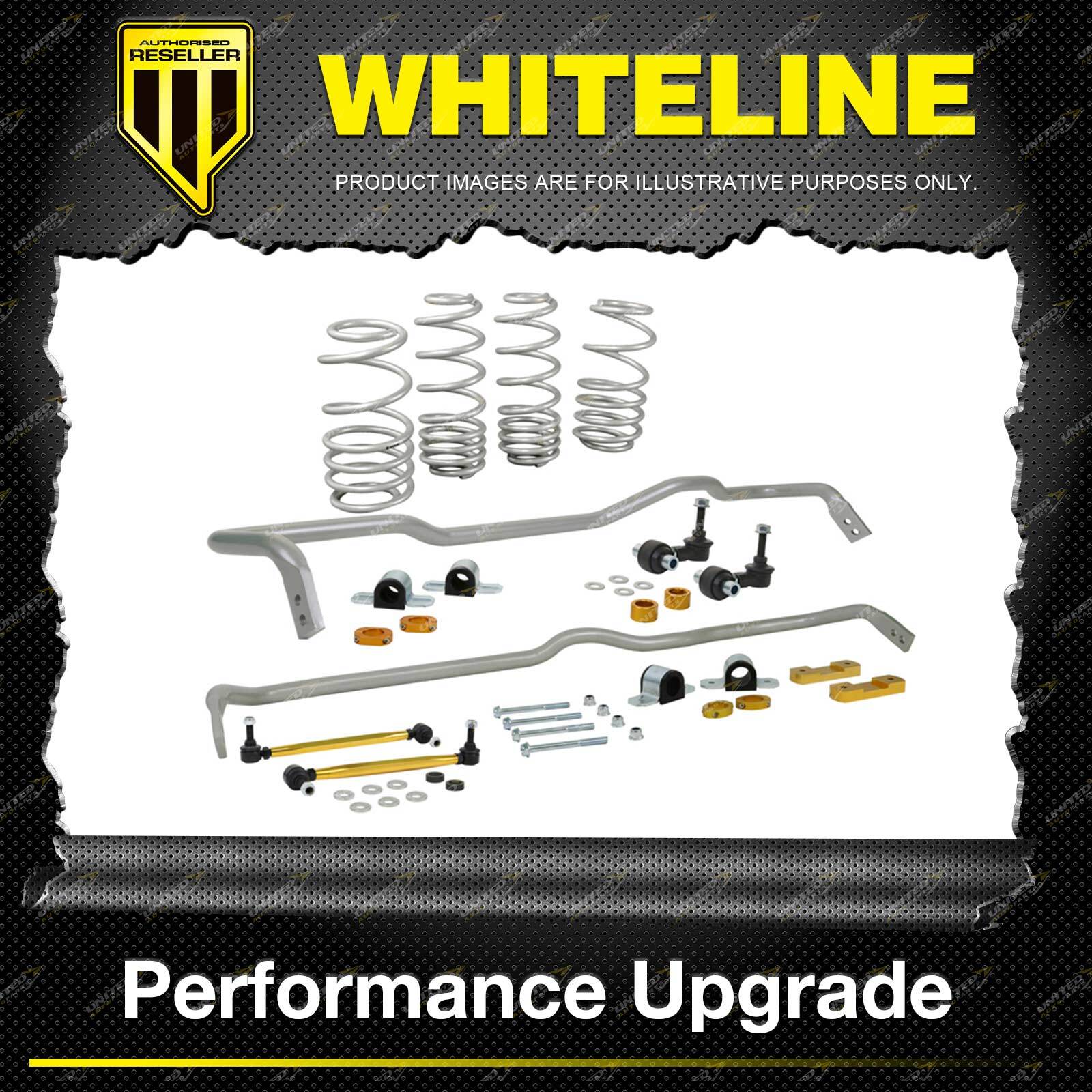

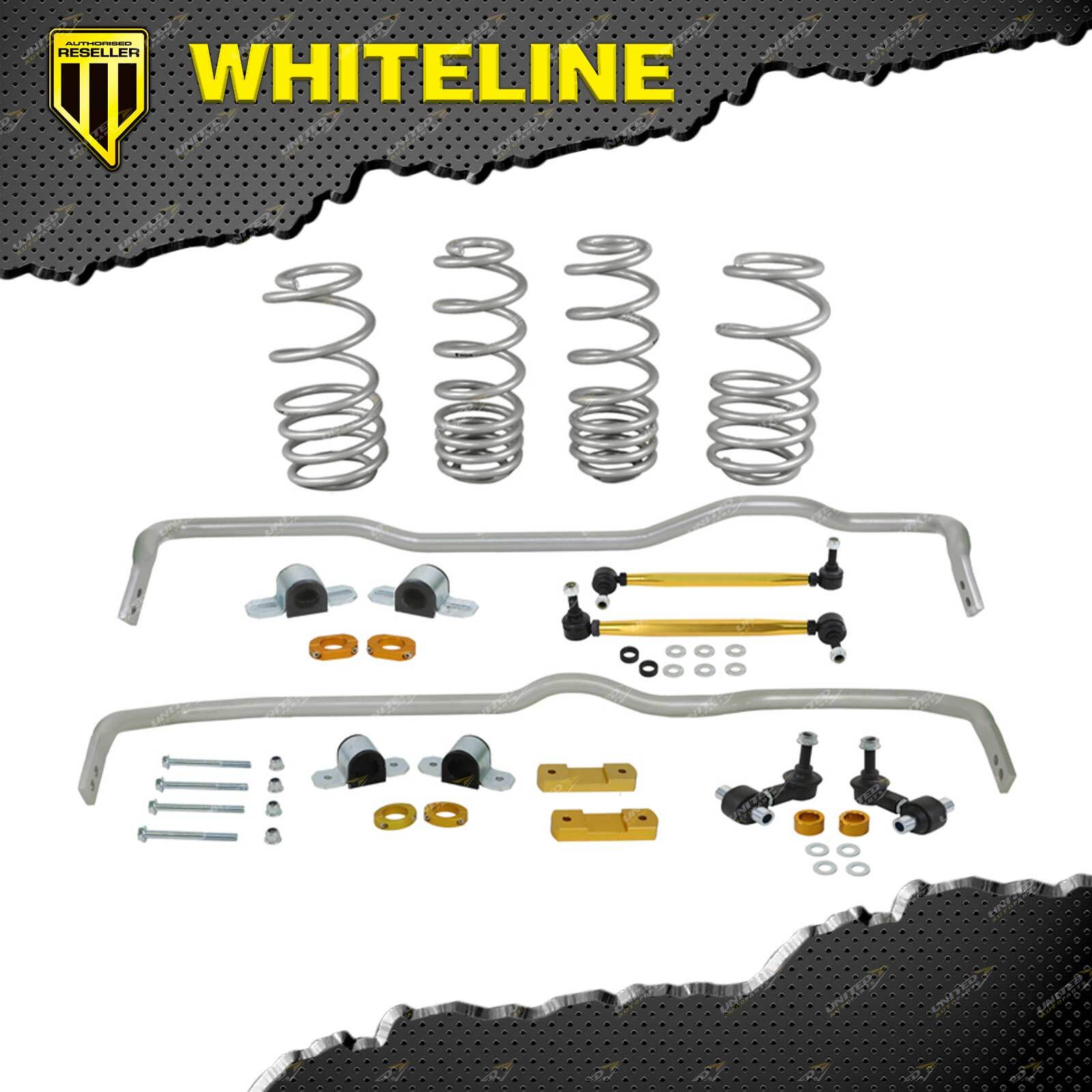

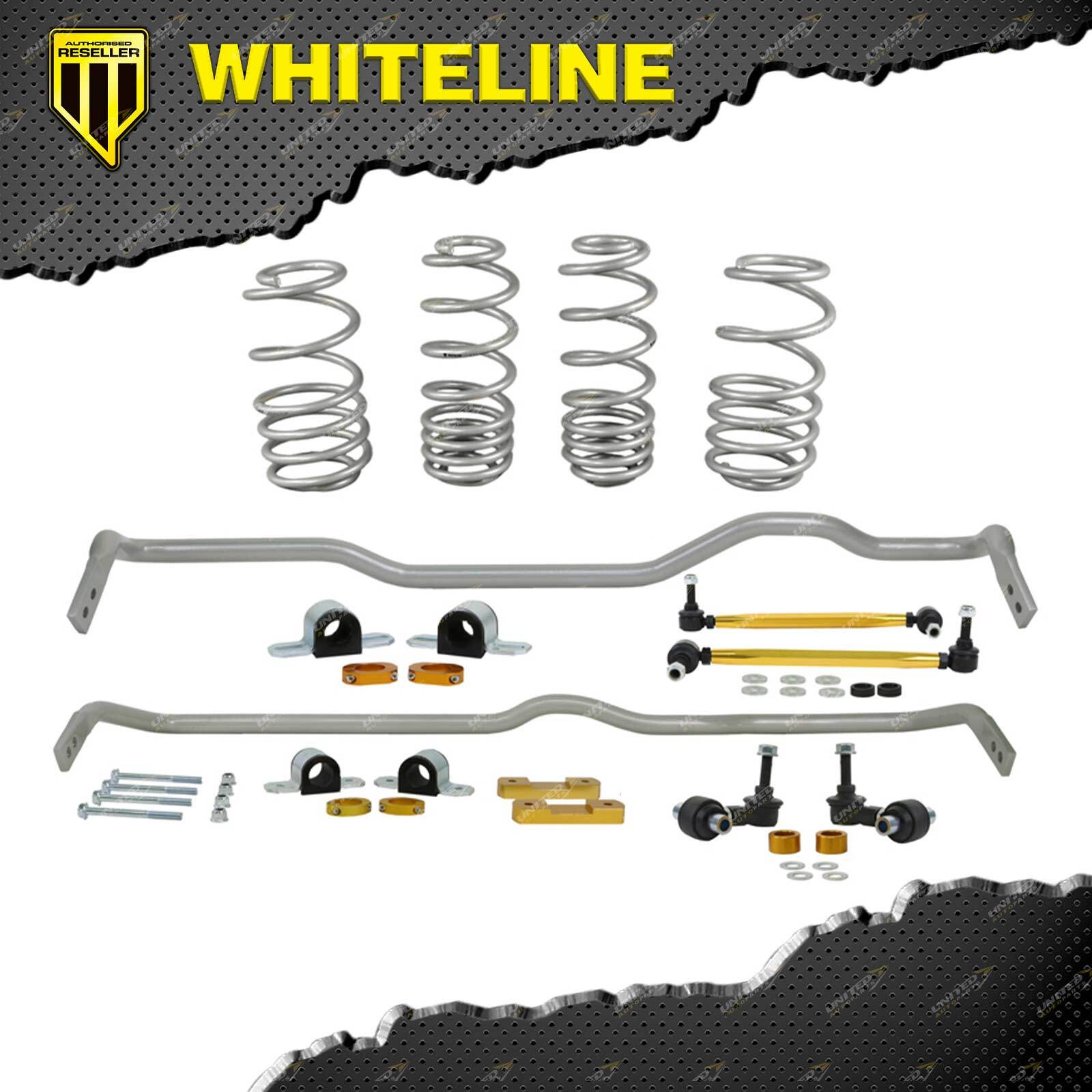

Kit Contents : 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 2 Plates, 2 Spacers, 4 Lateral Locks, 4 Bolts, 10 Washers, 4 Nuts, Install Guide, Grease

Suit :

Audi A3 MK3 (TYP 8V) Quattro 4/5CYL 9/2012-ON (See Notes 1164)
Audi S3 MK3 (TYP 8V) Incl Rs3 4CYL 9/2012-ON (See Notes 1389)
Volkswagen Golf MK7 R (TYP 5G) 4MOTION 4CYL 11/2013-ON (See Notes 1389)
Volkswagen Golf MK7 ALLTRACK (TYP 5G) 4MOTION 4CYL 12/2014-ON (See Notes 1389)
Notes 1164 : Suits models - vehicle sway bar and lowered spring kit - contains WSK-VWN006 and BWK019 - essential to 'Activate more grip'
Notes 1389 : Vehicle sway bar and lowered spring kit - contains WSK-VWN006 and BWK019 - essential to 'Activate more grip'

Kit Contains :

WSK-VWN006 : Front + Rear Coil Springs - Lowered - Lowers Vehicle 20mm Front And Rear
BWK019 : Front + Rear Sway Bar - Vehicle Kit - Contains :

• BWF22Z : 26mm - 2 point adjustable Front Sway bar
• BWR25XZ : 24mm - 2 point adjustable Rear Sway bar
• KLC167A : Adjustable extra heavy duty Front Sway bar link
• KLC202 : Adjustable extra heavy duty Rear Sway bar link

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 kit featuring Whiteline signature front and rear adjustable (where applicable) swaybars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. This kit contains 4.1kg/mm (229lb/in) front rated springs that provide a 20mm drop while the 4.8kg/mm (269lb/in) rated rears deliver a desirable 20mm to the vehicle. Boasting a 26mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with high quality sway bar links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.

Features

• Whiteline sway bars are principally designed to reduce body roll or sway while cornering.
• Larger diameter sway bars offer a higher torsional resistance which in turn increases overall roll stiffness.
• Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
• Whiteline sway bar mounts utilise the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
• Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
• DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
• By eliminating flex and compliance associated with original equipment, these high strength links are engineered to increase sway bar effectiveness and improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
• Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
• Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm centre to centre.
• Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
• Cold rolled in Europe from the highest quality material.
• These progressive rate springs are designed to provide improved performance without compromising ride quality characteristics.
• Engineered for superior fit/performance with OEM shocks while produced to the finest tolerances ensuring exact fitment.
• Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
• Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
• Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
• PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
• Install guide included providing detailed instructions on how to install your new Whiteline purchase.
• This Whiteline kit is covered by a 3 Year / 60,000kms warranty.
